Trade Discount 17%

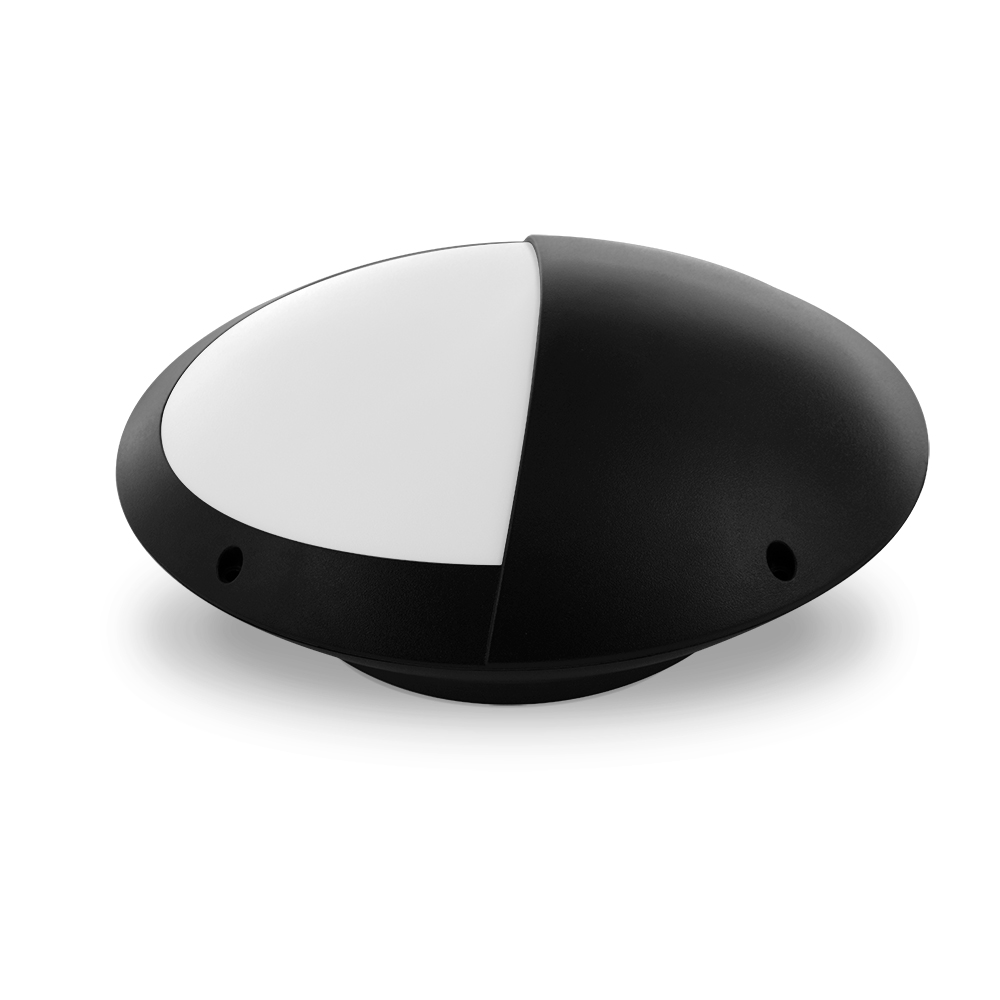

Oval 12W LED Polycarbonate Bunker Light | IP66 Rated | TRI-CCT Color Options | by atom
The Oval 12W LED Polycarbonate Bunker Light is designed for both indoor and outdoor use, featuring an IP66 rating for superior dust and water resistance. With TRI-CCT color options (3000K, 4000K, 5700K) and a high efficiency of up to 104 lm/W, this durable light is perfect for commercial and residential applications, ensuring long-lasting performance and energy savings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Oval LED Bunker Light, 12W LED Outdoor Wall Light, IP66 LED Bulkhead Light, TRI-CCT LED Bunker Light
Technical Specifications
- Power: 12W fixed output LED
- Input Voltage: 230Vac (216-253Vac range)
- Input Frequency: 50 Hz
- Input Current: 0.07 A
- Colour Rendering Index (CRI): >80
- Colour Temperature: TRI-CCT (3000K, 4000K, 5700K)
- Lumens Output: Up to 1250 lm depending on model and colour temperature
- LED Lifetime: >54,000 hours (L70B10 rating)
- IP Rating: IP66
- IK Rating: IK10
- Material: Polycarbonate body and diffuser
- Operating Temperature: -20°C to 45°C
- Switch Type: Inline
- Dimmable: No
- Driver Type: Fixed output, constant current, re-wireable terminal block (3 pin)
- Dimensions (H x L x W): 90mm x 150mm x 250mm
- Weight: 1.2 kg
Key Features
- 12W fixed output LED with TRI-CCT (3000K, 4000K, 5700K) selectable colour temperatures
- High system efficiency up to 104 lm/W
- IP66 rated for dust and water ingress protection
- IK10 impact resistance rating
- Polycarbonate body and diffuser for durability
- Non-dimmable with inline switch
- Re-wireable terminal block (3 pin) for easy wiring
- Long LED lifetime >54,000 hours (L70B10 rating)
- Operating temperature range from -20°C to 45°C
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Wall or ceiling installation for indoor and outdoor lighting
- Suitable for commercial, industrial, and residential environments requiring durable, weatherproof lighting
- Ideal for areas needing high ingress protection and impact resistance
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Fixed General Purpose Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for LED Modules
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics of Electrical Lighting and Similar Equipment
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifespan minimizes waste and replacement frequency
- Durable polycarbonate materials extend product life and reduce environmental impact
Warranty Information
3 years return-to-base warranty for domestic use. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users under specific terms and conditions.
Available Now
The Atom Oval 12W LED Polycarbonate Bunker Light with IP66 rating and TRI-CCT is available for immediate purchase, ideal for robust indoor and outdoor lighting applications requiring high durability and energy efficiency.
Lighting Requirement Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
