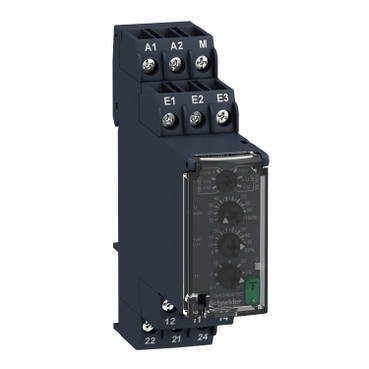

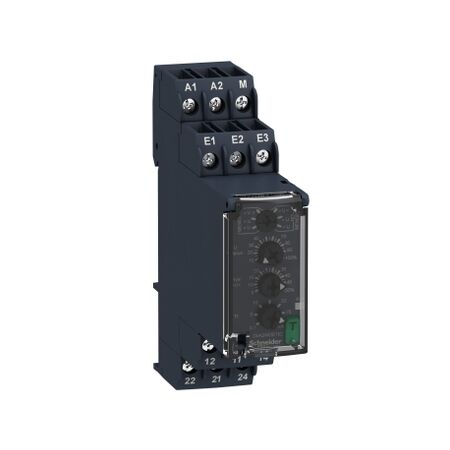

Over Voltage Control Relay | 15V to 500V AC/DC | 2 Changeover Outputs | LED Status Indicator | @Pack of 1 | by Clipsal
The Over Voltage Control Relay is designed to monitor both overvoltage and undervoltage conditions, making it ideal for industrial automation and electrical distribution applications. With a wide control voltage range of 15V to 500V AC/DC and two changeover relay outputs, it offers flexible control options. The compact DIN rail mountable design and LED status indicators ensure easy installation and operational clarity, protecting your systems from voltage fluctuations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Over Voltage Control Relay | 15V to 500V AC/DC | 2 Changeover Outputs | LED Status Indicator | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHRM22UA33MR
Alternatively Known As: Voltage Monitoring Relay, Overvoltage Relay, Undervoltage Relay, Clipsal RM22UA33MR, Voltage Protection Relay
Technical Specifications
- Control voltage range: 15V to 500V AC/DC
- Relay outputs: 2 x changeover (C/O)
- Mounting: DIN rail
- Status indication: LED
- Response time: < 100 ms
- Contact rating: 5A at 250V AC
- Operating temperature: -20°C to +60°C
- IP20 protection (housing)
- Dimensions (H x L x W): 90mm x 70mm x 17.5mm
- Weight: 0.12 kg
Key Features
- Monitors both overvoltage and undervoltage conditions
- Wide voltage range: 15V to 500V AC/DC
- 2 changeover (C/O) relay outputs for flexible control
- DIN rail mountable for easy installation
- LED status indicators for operational clarity
- Compact design for space-saving installation
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with Australian electrical safety standards.
Applications
- Industrial automation panels
- Electrical distribution boards
- Motor protection circuits
- Building management systems
- Renewable energy systems
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Prevents equipment damage and extends lifespan by protecting against voltage fluctuations
- Reduces risk of electrical fires and system failures
- Supports energy efficiency by maintaining optimal voltage levels
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Over Voltage Control Relay SCHRM22UA33MR is available for immediate purchase. Ideal for industrial, commercial, and building automation applications requiring reliable voltage monitoring and protection.
