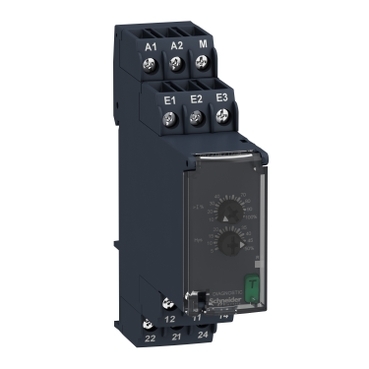

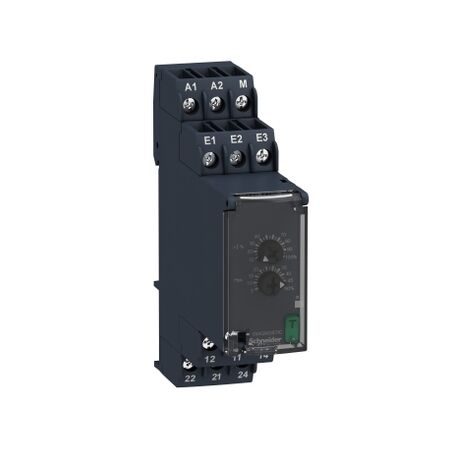

Overcurrent Control Relay RM22-JA | 24–240V AC/DC | 2 Changeover Outputs | DIN Rail Mount | @Pack of 1 | by Clipsal
The Overcurrent Control Relay RM22-JA is designed to monitor overcurrent conditions, providing enhanced circuit protection for industrial automation and motor protection applications. With a wide control voltage range of 24–240V AC/DC and two changeover relay outputs, it ensures flexible integration and reliable performance. Ideal for electrical distribution boards, this compact relay features LED indicators for quick diagnostics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Overcurrent Control Relay RM22-JA | 24–240V AC/DC | 2 Changeover Outputs | DIN Rail Mount | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHRM22JA21MR
Alternatively Known As: current control relay, Harmony RM22JA, overcurrent relay, Clipsal RM22-JA, SCHRM22JA21MR relay
Technical Specifications
- Control voltage: 24–240V AC/DC
- Output contacts: 2 changeover (2CO)
- Contact rating: 8A at 250V AC
- Current measurement range: 2–20A (adjustable)
- Mounting: DIN rail
- LED indicators: Power and relay status
- Operating temperature: -20°C to +50°C
- IP20 enclosure
- Dimensions (H x L x W): 78mm x 100mm x 22.5mm
- Weight: 0.15 kg
Key Features
- Monitors overcurrent conditions for enhanced circuit protection
- Wide control voltage range: 24–240V AC/DC
- 2 changeover (2CO) relay outputs for flexible integration
- 8A output contact rating
- Compact DIN rail mounting for easy installation
- LED status indicators for quick diagnostics
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Industrial automation panels
- Motor protection circuits
- Electrical distribution boards
- Monitoring and control of electrical loads
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Prevents electrical faults, reducing risk of equipment damage and energy waste
- Enhances system reliability, minimizing downtime and resource consumption
Warranty Information
18 months warranty from date of invoice against manufacturing defects.
Available Now
The Clipsal Overcurrent Control Relay RM22-JA (SCHRM22JA21MR) is available for immediate purchase. Ideal for industrial automation, motor protection, and electrical distribution applications.
