Overhead Earthing Cable Set 70mm² & 35mm² | 19.5kA Rating | Universal Clamps by Cabac

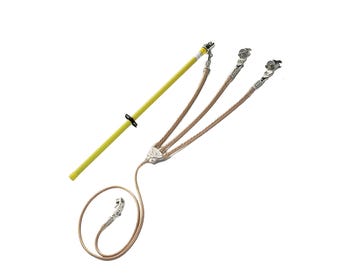

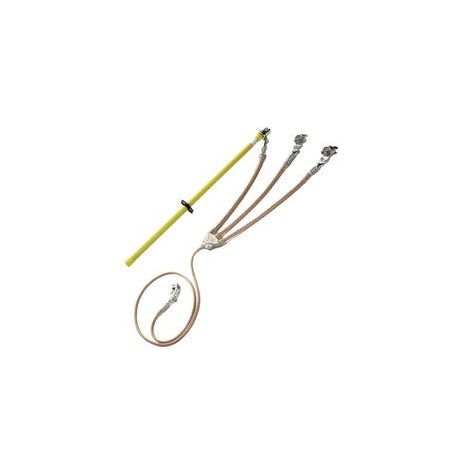

The Cabac OH Earth Set 70/35 mm2 is a high-quality overhead portable earthing device set designed for electrical safety with copper trifurcating cables and universal clamps, rated to 19.5kA for 0.5 seconds.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: OH Earth Set 70/35 mm2
Brand: Cabac
SKU: D-770604-S-SET
Alternatively Known As: Overhead Earthing Cable Set, Portable Earthing Device, Temporary Earthing Set, Electrical Earthing Clamp Set
Technical Specifications
- A/B/C Phase Tail: 70mm² x 2m
- Earth Tail: 35mm² x 7m
- Overhead Earthing Clamps included for A/B/C cables
- Universal Earthing Clamp on Earth Tail
- Rated to 19.5kA for 0.5 seconds
- Dimensions (H x L x W): 35mm x 7000mm x 70mm
- Weight: 5 kg
Key Features
- German engineered ultra high quality copper trifurcating earthing cable set
- Includes D-773331 x 1 Clamp Uni T-pin Shaft Long
- Includes D-784085 x 3 Clamps for OH Cable D10-85mm
- 7m earth tail with universal clamps
- 2m A/B/C phase tails
- Rated to 19.5kA for 0.5 seconds
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper earthing and safety compliance.
Applications
- Electrical power connectivity for overhead lines
- Temporary portable earthing for electrical safety
- Earthing and bonding in industrial and construction sites
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of electrical faults and fires
- Durable copper materials ensure long service life reducing waste
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac OH Earth Set 70/35 mm2 is available now for immediate purchase. Ideal for electrical safety in overhead power connectivity and temporary earthing applications.
