Overhead Earthing Set 95mm² & 35mm² | Rated 26.5kA | Copper Trifurcating Cables | Universal Clamps by Cabac

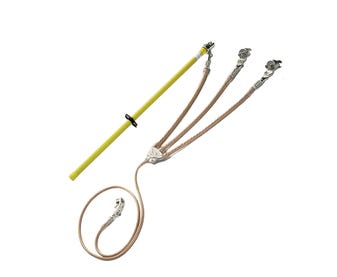

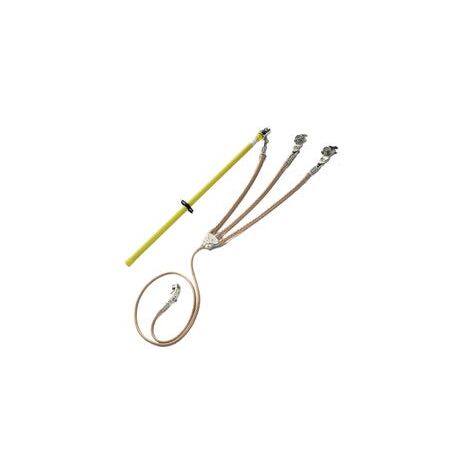

The Cabac OH Earth Set 95/35 mm2 is a high-quality overhead portable earthing device set designed for electrical safety, rated to 26.5kA for 0.5 seconds, featuring copper trifurcating cables and universal clamps.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: OH Earth Set 95/35 mm2
Brand: Cabac
SKU: D-795604-S-SET
Alternatively Known As: Overhead Earthing Set, Portable Earthing Cable Set, Temporary Earthing Device, Electrical Earthing Kit
Technical Specifications
- A/B/C Phase Tail: 95mm² x 2m
- Earth Tail: 35mm² x 7m
- Rated Current: 26.5kA for 0.5 seconds
- Includes overhead earthing clamps for A/B/C cables
- Universal earthing clamp on earth tail
- Dimensions (H x L x W): 100mm x 7000mm x 100mm
- Weight: 5 kg
Key Features
- Rated to 26.5kA for 0.5 seconds
- Includes A/B/C phase tails of 95mm² x 2m
- Includes earth tail of 35mm² x 7m
- Overhead earthing clamps on A/B/C cables
- Universal earthing clamp on earth tail
- German engineered copper trifurcating earthing cable set
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with safety standards and proper earthing connection.
Applications
- Electrical power connectivity for overhead lines
- Temporary portable earthing for safety during electrical maintenance
- Earthing and bonding in industrial and construction sites
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of electrical accidents and associated environmental hazards
- Durable copper materials ensure long product life reducing waste
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac OH Earth Set 95/35 mm2 is available for immediate purchase, ideal for electrical safety applications in overhead power line maintenance and temporary earthing.
