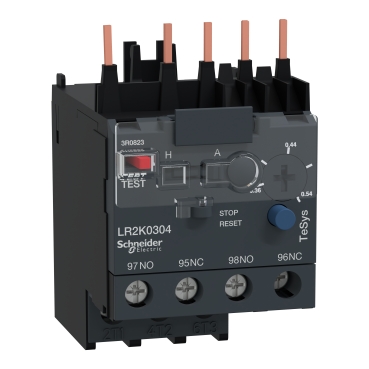

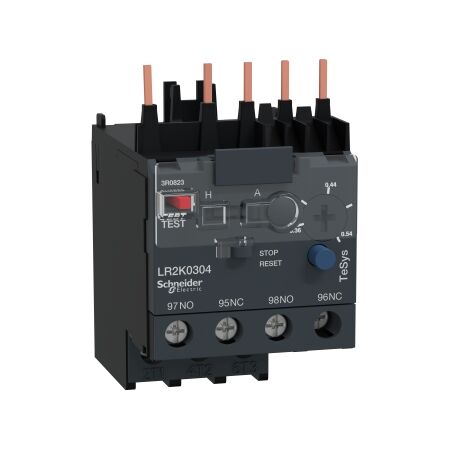

Overload Relay 0.36 - 0.54A | Adjustable Current Range | Manual & Automatic Reset | Trip Class 10A | @Quantity of 1 | by Clipsal
Overload Relay 0.36 - 0.54A is designed for effective motor protection in industrial applications. With an adjustable current range and both manual and automatic reset options, it ensures reliable operation. Ideal for HVAC systems, pumps, and conveyor systems, this relay features phase failure sensitivity and a trip class of 10A for fast motor protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Overload Relay 0.36 - 0.54A | Adjustable Current Range | Manual & Automatic Reset | Trip Class 10A | @Quantity of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLR2K0304
Alternatively Known As: motor overload relay, thermal overload relay, adjustable overload relay, SCHLR2K0304, Clipsal relay
Technical Specifications
- Current Range: 0.36 - 0.54A
- Trip Class: 10A
- Reset: Manual/Automatic
- Mounting: Direct to contactor
- Phase Failure Sensitivity: Yes
- Test/Stop Function: Yes
- Operating Temperature: -20°C to +60°C
- Standards: IEC 60947-4-1
- Dimensions (H x L x W): 70mm x 75mm x 45mm
- Weight: 0.15 kg
Key Features
- Adjustable current range: 0.36 - 0.54A
- Manual and automatic reset options
- Trip class 10A for fast motor protection
- Direct mounting to contactors
- Phase failure sensitivity
- Test and stop functions for easy maintenance
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with Australian electrical standards and safe operation.
Applications
- Motor protection in industrial control panels
- HVAC systems
- Pumps and compressors
- Conveyor systems
- General machinery requiring overload protection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Prevents motor damage, reducing equipment waste
- Enhances energy efficiency by protecting motors from overload conditions
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Overload Relay 0.36 - 0.54A (SCHLR2K0304) is available for immediate purchase. Ideal for industrial motor protection and control panel applications.
