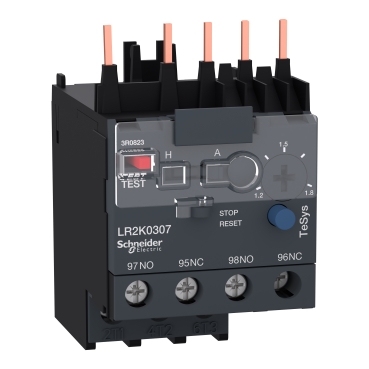

Overload Relay 1.2A-1.8A | Adjustable Current Range | Manual & Automatic Reset | Compact Design | by Clipsal
The Overload Relay 1.2A-1.8A is designed for reliable motor protection in industrial automation panels. With an adjustable current range and both manual and automatic reset options, it ensures fast response to overloads. Ideal for HVAC systems, pumps, and conveyor systems, this compact relay integrates seamlessly into control panels, extending equipment lifespan and preventing energy waste.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Overload Relay 1.2A-1.8A | Adjustable Current Range | Manual & Automatic Reset | Compact Design | by Clipsal
Brand: Clipsal
SKU: SCHLR2K0307
Alternatively Known As: motor overload relay, thermal overload relay, adjustable overload protector, SCHLR2K0307, Clipsal overload relay
Technical Specifications
- Current Range: 1.2A - 1.8A
- Trip Class: 10
- Reset: Manual/Automatic
- Mounting: Direct or separate mounting
- Auxiliary contacts: 1 NO + 1 NC
- Operating Temperature: -20°C to +60°C
- Standards: IEC 60947-4-1
- Dimensions (H x L x W): 70mm x 75mm x 45mm
- Weight: 0.15 kg
Key Features
- Adjustable current range: 1.2A to 1.8A
- Manual and automatic reset options
- Reliable protection against motor overloads
- Compact design for easy integration into control panels
- Trip class 10 for fast response to overloads
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure correct integration and compliance with Australian standards.
Applications
- Motor protection in industrial automation panels
- HVAC systems
- Pumps and compressors
- Conveyor systems
- General electrical control panels
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Prevents unnecessary energy consumption by protecting motors from damage
- Extends equipment lifespan, reducing electronic waste
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Overload Relay 1.2A-1.8A SCHLR2K0307 is available for immediate purchase. Ideal for protecting motors in industrial and commercial electrical systems.
