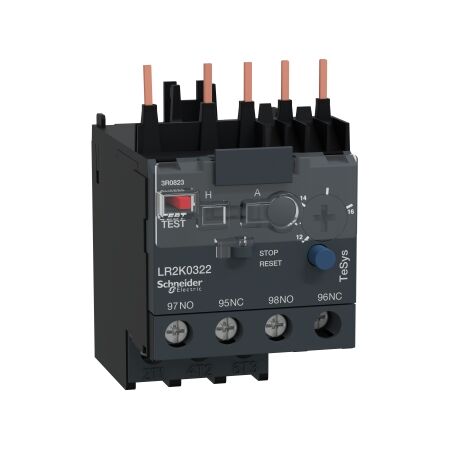

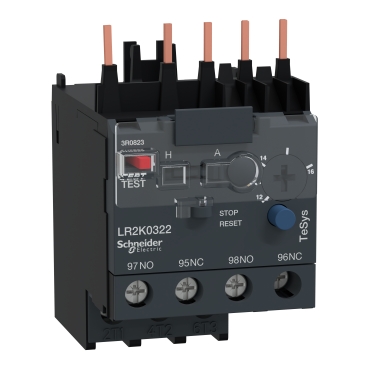

Overload Relay 12-16A | Adjustable Current Range | Manual & Automatic Reset | Phase Failure Sensitivity | @Pack of 1 | by Clipsal
The Overload Relay 12-16A is designed for reliable motor protection in industrial and commercial applications. With an adjustable current range and both manual and automatic reset options, it ensures optimal performance and safety. Ideal for use in control panels and HVAC systems, this relay features phase failure sensitivity for enhanced reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Overload Relay 12-16A | Adjustable Current Range | Manual & Automatic Reset | Phase Failure Sensitivity | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLR2K0322
Alternatively Known As: motor overload relay, thermal overload relay, 12-16A overload protector, SCHLR2K0322 relay, Clipsal motor protection relay
Technical Specifications
- Current Range: 12-16A adjustable
- Trip Class: 10A
- Reset: Manual and automatic
- Mounting: Direct to contactor
- Phase Failure Sensitivity: Yes
- Auxiliary Contacts: 1 NO + 1 NC
- Operating Temperature: -20°C to +60°C
- Standards: IEC 60947-4-1
- Dimensions (H x L x W): 70mm x 75mm x 45mm
- Weight: 0.25 kg
Key Features
- Adjustable current range: 12-16A
- Manual and automatic reset options
- Phase failure sensitivity
- Trip class 10A for fast response
- Direct mounting to contactors
- Reliable protection against overloads
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with Australian electrical safety standards.
Applications
- Motor protection in industrial control panels
- Commercial and industrial automation systems
- Electrical distribution boards
- HVAC equipment
- Pumps, fans, and compressors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Prevents motor damage, reducing equipment waste
- Enhances energy efficiency by protecting motors from excessive current draw
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Overload Relay 12-16A SCHLR2K0322 is available for immediate purchase. Ideal for protecting motors in industrial and commercial electrical installations.
