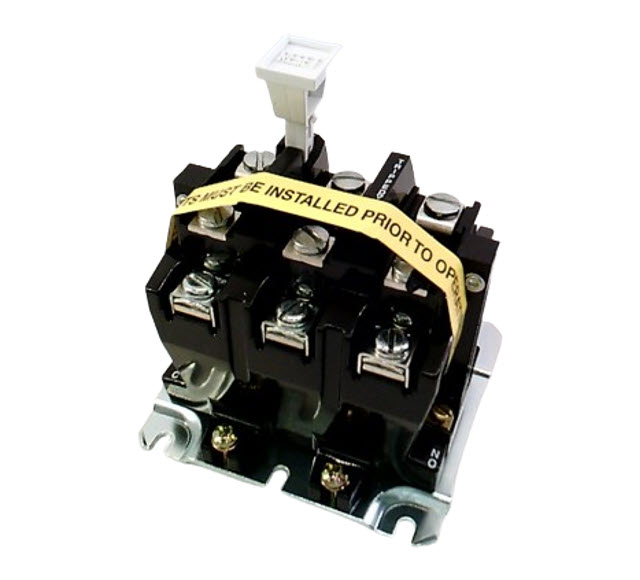

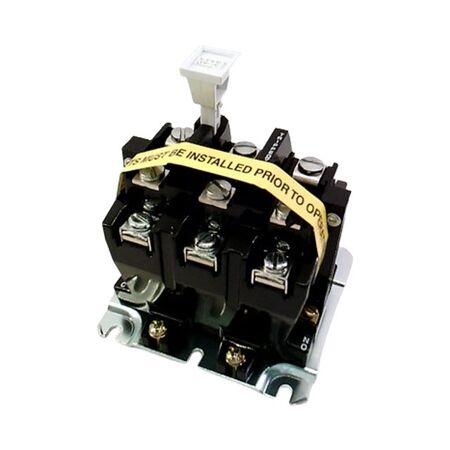

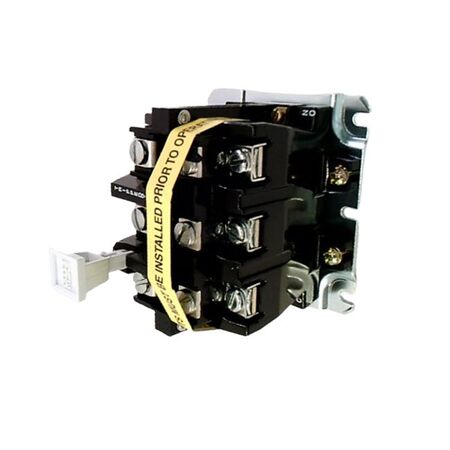

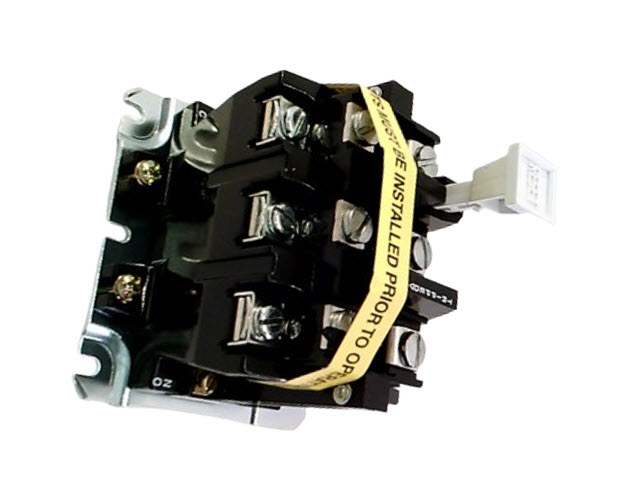

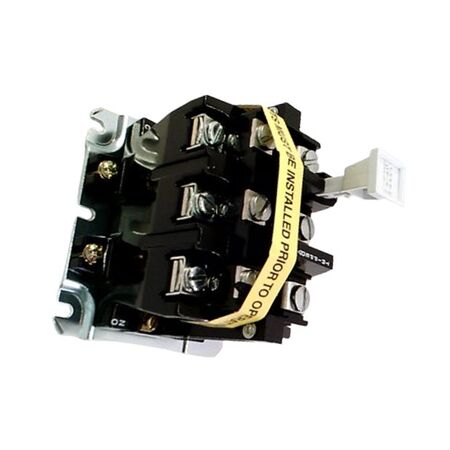

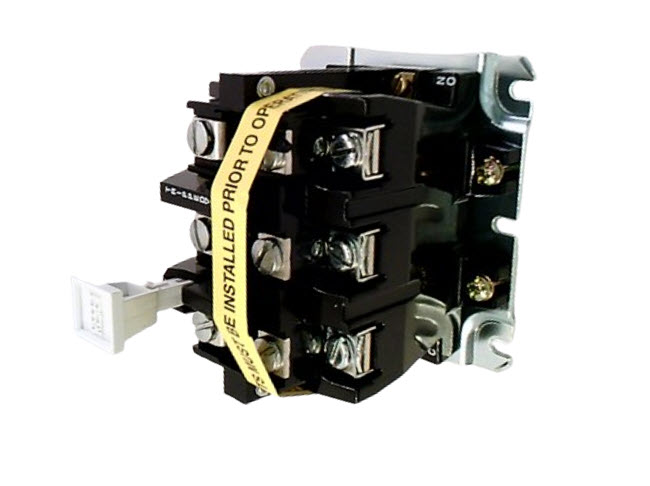

Overload Relay 3 Pole 40 Amp | Manual Reset | N.O. & N.C. Contacts | by Allen-Bradley
The Overload Relay 3 Pole 40 Amp is designed for industrial motor protection, featuring a manual reset mechanism and both normally open and normally closed contacts. Ideal for panel mounting in electrical control systems, this relay ensures reliable overload protection for motors in manufacturing and processing plants, enhancing energy efficiency and extending equipment life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Current Rating: 40 Amp
- Voltage Rating: 120/600 VAC
- Contact Configuration: Normally Open (N.O.) and Normally Closed (N.C.)
- Number of Poles: 3
- NEMA Size: 1
- Reset Type: Manual
- Mounting Type: Panel Mount
- Dimensions (H x L x W): 90mm x 100mm x 70mm
- Weight: 1.5 kg
Key Features
- Manual reset overload relay
- 3 pole design
- 40 Amp current rating
- N.O. (Normally Open) and N.C. (Normally Closed) contacts
- NEMA Size 1 standard
- Panel mount installation
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper operation.
Applications
- Industrial motor protection
- Panel mounting in electrical control systems
- Overload protection for motors in manufacturing and processing plants
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Protects motors from damage, reducing waste and extending equipment life
- Helps improve energy efficiency by preventing motor overheating
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 592BOV169 Overload Relay is available for immediate purchase, ideal for industrial motor protection and control panel applications.
