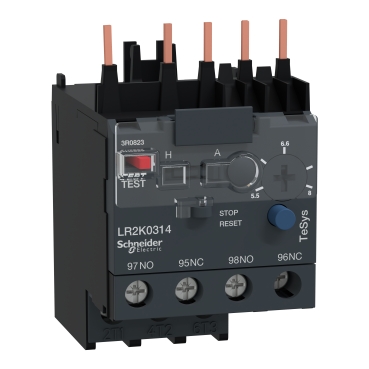

Overload Relay 5.5/8.0 Amps | Manual/Automatic Reset | Trip Class 10A | by Clipsal
The Overload Relay 5.5/8.0 Amps is designed for effective motor protection in industrial automation. With adjustable current range and both manual and automatic reset options, it ensures reliable operation in control panels, HVAC systems, and more. This relay features phase failure sensitivity and a test/stop function, making it ideal for licensed electricians to install and maintain.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Overload Relay 5.5/8.0 Amps | Manual/Automatic Reset | Trip Class 10A | by Clipsal
Brand: Clipsal
SKU: SCHLR2K0314
Alternatively Known As: motor overload relay, thermal overload relay, overload protector, LR2K0314, Schneider overload relay
Technical Specifications
- Current Range: 5.5 - 8.0 Amps
- Trip Class: 10A
- Reset: Manual/Automatic
- Mounting: Direct to contactor
- Phase Failure Sensitivity: Yes
- Test/Stop Function: Yes
- Auxiliary Contacts: 1 NO + 1 NC
- Operating Temperature: -20°C to +60°C
- Dimensions (H x L x W): 70mm x 75mm x 45mm
- Weight: 0.25 kg
Key Features
- Adjustable current range: 5.5 to 8.0 Amps
- Manual and automatic reset options
- Trip class 10A for fast motor protection
- Direct mounting to contactors
- Phase failure sensitivity
- Test and stop functions for easy maintenance
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with Australian electrical standards.
Applications
- Motor protection in industrial automation
- Control panels for machinery
- HVAC systems
- Pumps and compressors
- Conveyor systems
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear.
Environmental Benefits
- Prevents motor damage, reducing equipment waste and extending operational life.
- Improves energy efficiency by protecting motors from overcurrent conditions.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Overload Relay 5.5-8.0A SCHLR2K0314 is available for immediate purchase. Ideal for industrial motor protection and control panel applications.
