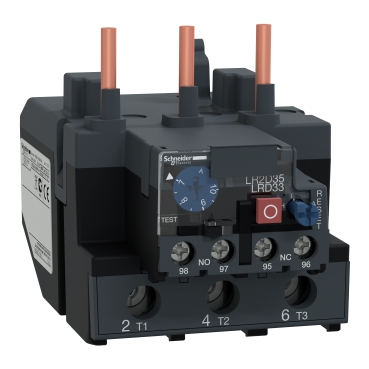

Overload Relay 7-10A | Adjustable Current Range | Manual & Automatic Reset | Trip Class 10A | @Pack of 1 | by Clipsal
The Overload Relay 7-10A is designed for effective motor protection in industrial automation. With an adjustable current range and both manual and automatic reset options, it ensures fast response to overload conditions. Ideal for control panels, HVAC systems, and pumps, this relay enhances energy efficiency and extends equipment lifespan.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Overload Relay 7-10A | Adjustable Current Range | Manual & Automatic Reset | Trip Class 10A | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLRD3314
Alternatively Known As: Motor Overload Relay, Thermal Overload Relay, SCHLRD3314, 7-10A Overload Protector, Clipsal Motor Protection Relay
Technical Specifications
- Current Range: 7-10A adjustable
- Trip Class: 10A
- Reset: Manual and automatic
- Mounting: Direct to contactor
- Phase failure sensitivity: Yes
- Test and stop functions: Yes
- Auxiliary contacts: 1 NO + 1 NC
- Operating temperature: -20°C to +60°C
- Standards: IEC 60947-4-1
- Dimensions (H x L x W): 70mm x 75mm x 45mm
- Weight: 0.25 kg
Key Features
- Adjustable current range: 7-10A
- Manual and automatic reset options
- Trip class 10A for fast motor protection
- Phase failure sensitivity
- Direct mounting to contactors
- Test and stop functions for easy maintenance
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure correct integration with motor starters and compliance with Australian electrical standards.
Applications
- Motor protection in industrial automation
- Control panels for machinery
- HVAC systems
- Pumps and compressors
- Conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Prevents motor damage, reducing equipment waste
- Enhances energy efficiency by protecting motors from overload
- Supports longer equipment lifespan, minimizing resource consumption
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Overload Relay 7-10A SCHLRD3314 is available for immediate purchase. Ideal for industrial and commercial motor protection applications.
