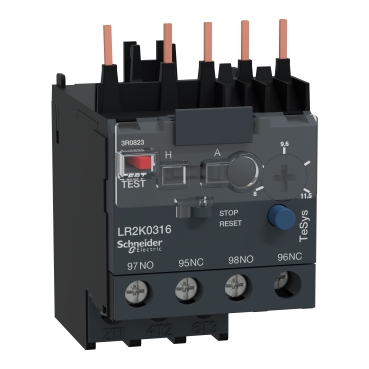

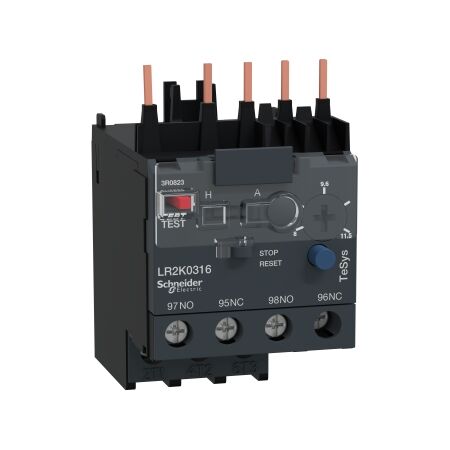

Overload Relay 8.0-11.5A | Manual & Automatic Reset | Phase Failure Sensitivity | by Clipsal
The Overload Relay 8.0-11.5A is designed for reliable motor protection in industrial applications. With adjustable current range, manual and automatic reset options, and phase failure sensitivity, it ensures optimal performance for control panels, HVAC systems, and more. Built for safety and efficiency, this relay helps prevent motor damage and enhances equipment lifespan.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Overload Relay 8.0-11.5A | Manual & Automatic Reset | Phase Failure Sensitivity | by Clipsal
Brand: Clipsal
SKU: SCHLR2K0316
Alternatively Known As: motor overload relay, thermal overload relay, Clipsal LR2K0316, motor protection relay, overload protector
Technical Specifications
- Current Range: 8.0-11.5A
- Trip Class: 10A
- Reset: Manual/Automatic
- Mounting: Direct to contactor
- Phase Failure Sensitivity: Yes
- Auxiliary Contacts: 1 NO + 1 NC
- Operating Temperature: -20°C to +60°C
- Standards: IEC 60947-4-1
- Dimensions (H x L x W): 70mm x 75mm x 45mm
- Weight: 0.3 kg
Key Features
- Adjustable current range: 8.0-11.5A
- Manual and automatic reset options
- Phase failure sensitivity
- Trip class 10A for fast motor protection
- Direct mounting to contactors
- Reliable thermal overload protection
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with Australian electrical standards and safe operation.
Applications
- Motor protection in industrial automation
- Control panels for machinery
- HVAC systems
- Pumps and compressors
- Conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Prevents motor damage, reducing equipment waste
- Enhances energy efficiency by protecting against overloads
- Supports longer equipment lifespan, minimizing environmental impact
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Overload Relay 8.0-11.5A SCHLR2K0316 is available for immediate purchase. Ideal for industrial motor protection and control panel applications.
