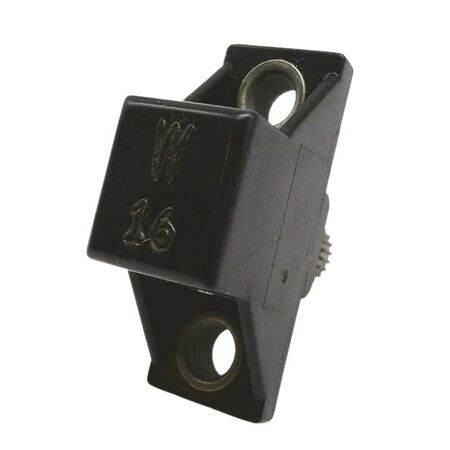

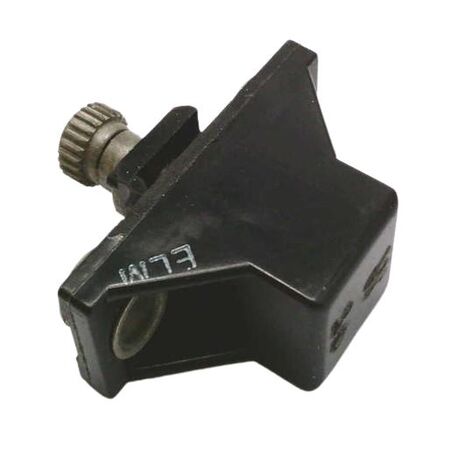

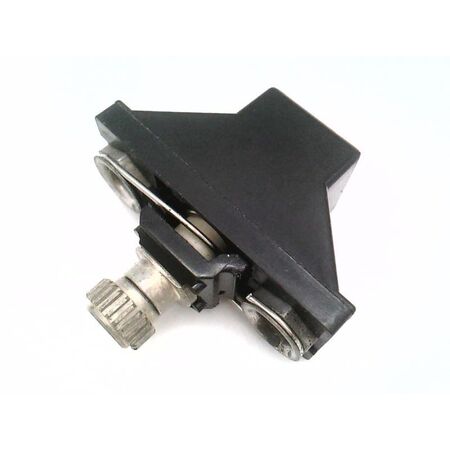

Overload Relay Heater Element W16 | Eutectic Alloy | Class 20 Protection | NEMA Certified | by Allen-Bradley
The W16 Overload Relay Heater Element is designed for reliable performance in motor control applications, featuring durable eutectic alloy construction and a Class 20 protection rating. Ideal for use with Bulletin Series 100, 500, 609, and 1200 overload relays, it ensures optimal protection for motors operating between 0.31 to 0.37 A, making it a perfect choice for industrial and commercial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: W16 Overload Relay Heater Element
- Material: Eutectic alloy
- Class 20 protection
- Compatible with Bulletin Series 100, 500, 609, 1200
- Amp range: 0.31 to 0.37 A
- Suitable for sizes 0, 1, 00, 24A, 32A, 40A
- Ambient temperature rating: 40°C
- NEMA certified
- Dimensions (H x L x W): 20mm x 70mm x 50mm
- Weight: 0.1 kg
Key Features
- Eutectic alloy construction for reliable performance
- Class 20 protection rating
- NEMA certified for quality and safety
- Designed for 40 degree Celsius ambient temperature
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper fit and compliance with electrical safety standards.
Applications
- Use with Bulletin Series 100, 500, 609, 1200 overload relays
- Suitable for overload protection in electrical motor control circuits
- Applicable for sizes 0, 1, 00, 24A, 32A, or 40A with amps between 0.31 to 0.37
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances motor protection to prevent energy waste from motor damage
- Durable eutectic alloy reduces replacement frequency, minimizing waste
Warranty Information
Includes Radwell 2-year warranty; factory warranty does not apply.
Available Now
The Allen-Bradley W16 Overload Relay Heater Element is available for immediate purchase, ideal for industrial and commercial motor control applications.
