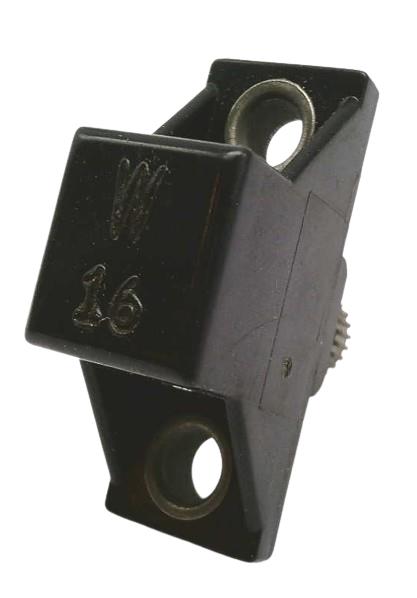

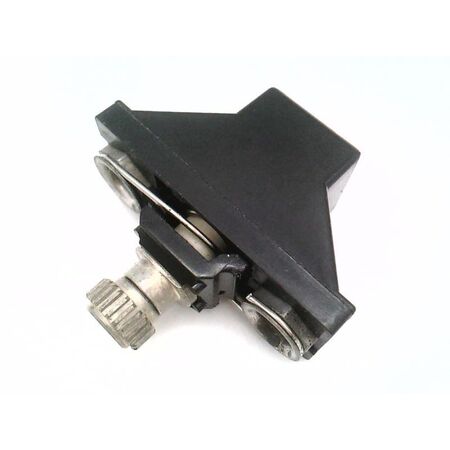

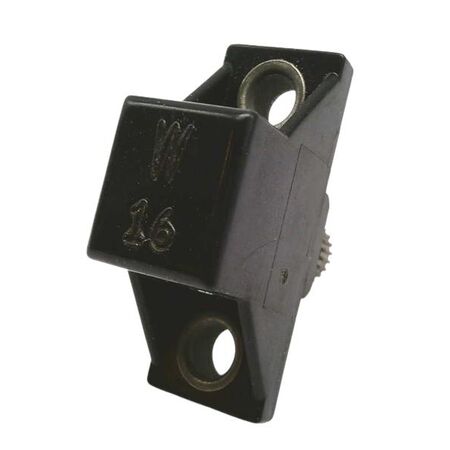

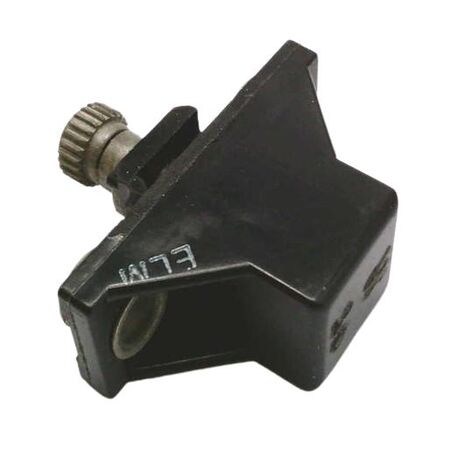

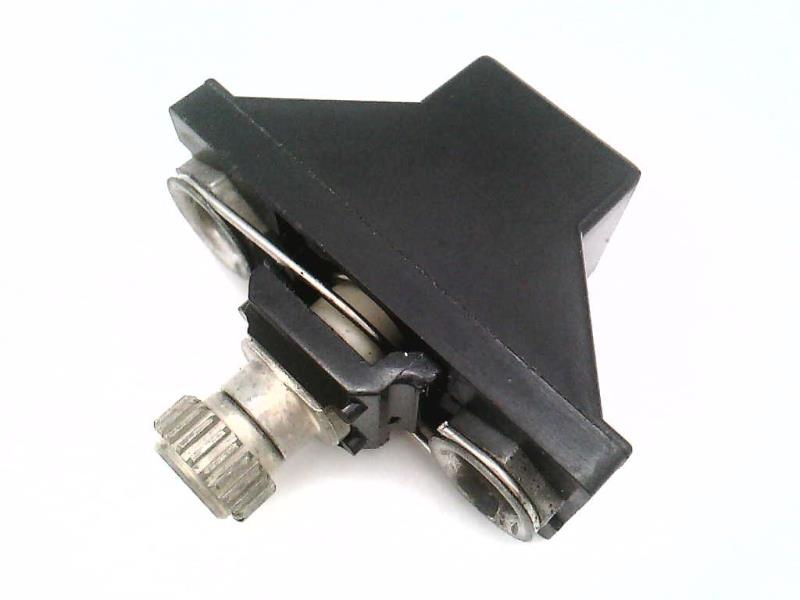

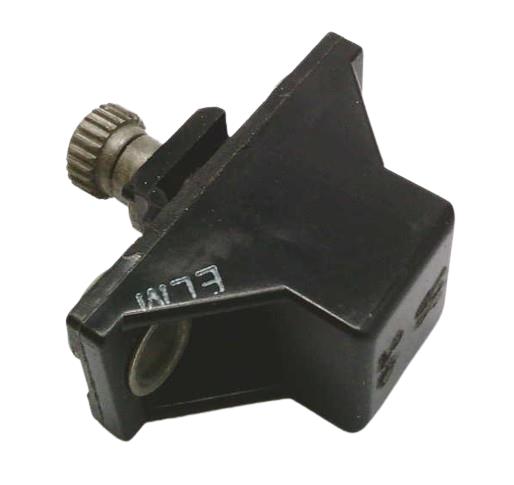

Product Name/Title: Allen-Bradley W16 Overload Relay Heater Element
Brand: Allen-Bradley
SKU: W16
Alternatively Known As: Overload Relay Heater, W16 Heater Element, Allen-Bradley Heater Element, Overload Heater W16
Technical Specifications
- Type: W16 Overload Relay Heater Element
- Material: Eutectic alloy
- Class 20 protection
- Compatible with Bulletin Series 100, 500, 609, 1200
- Amp range: 0.31 to 0.37 A
- Suitable for sizes 0, 1, 00, 24A, 32A, 40A
- Ambient temperature rating: 40°C
- NEMA certified
- Dimensions (H x L x W): 20mm x 70mm x 50mm
- Weight: 0.1 kg
Key Features
- Eutectic alloy construction for reliable performance
- Class 20 protection rating
- NEMA certified for quality and safety
- Designed for 40 degree Celsius ambient temperature
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper fit and compliance with electrical safety standards.
Applications
- Use with Bulletin Series 100, 500, 609, 1200 overload relays
- Suitable for overload protection in electrical motor control circuits
- Applicable for sizes 0, 1, 00, 24A, 32A, or 40A with amps between 0.31 to 0.37
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances motor protection to prevent energy waste from motor damage
- Durable eutectic alloy reduces replacement frequency, minimizing waste
Warranty Information
Includes Radwell 2-year warranty; factory warranty does not apply.
Available Now
The Allen-Bradley W16 Overload Relay Heater Element is available for immediate purchase, ideal for industrial and commercial motor control applications.
