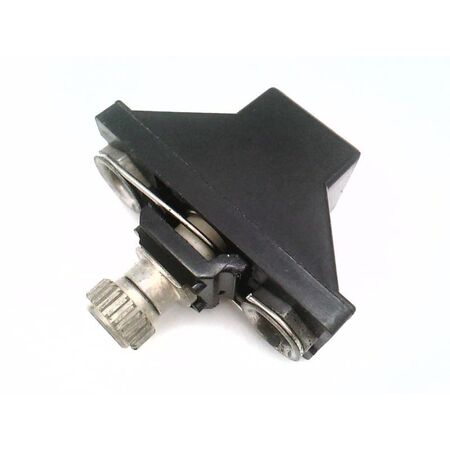

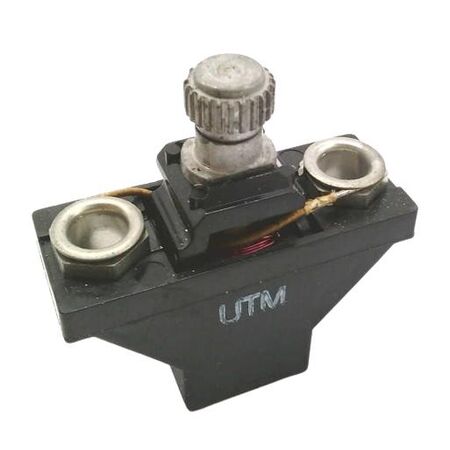

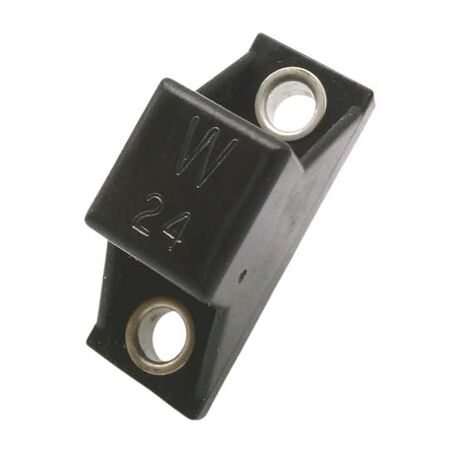

Overload Relay Heater Element W24 | Eutectic Alloy | Class 20 Protection | NEMA Certified | by Allen-Bradley
The Overload Relay Heater Element W24 is designed for reliable motor protection, featuring a eutectic alloy construction and a Class 20 protection rating. Ideal for use in industrial settings, it operates effectively in ambient temperatures up to 40°C and is NEMA certified for quality and safety. Perfect for Bulletin Series 100/500/609/1200 overload relays, this heater element ensures optimal performance and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Compatible Amperage Range: 0.61 to 0.78 Amp
- Protection Class: Class 20
- Ambient Temperature Rating: 40°C
- Material: Eutectic Alloy
- Certification: NEMA Certified
- Dimensions (H x L x W): 20mm x 100mm x 50mm
- Weight: 0.2 kg
Key Features
- Eutectic alloy construction for reliable performance
- Class 20 protection rating
- Designed for ambient temperatures up to 40°C
- NEMA certified for quality and safety
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper integration with compatible overload relays.
Applications
- Use with Bulletin Series 100/500/609/1200 overload relays
- Suitable for electrical motor protection in industrial settings
- Compatible with sizes 0, 1, 00, 24A, 32A, and 40A
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable eutectic alloy reduces replacement frequency, minimizing waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley W24 Overload Relay Heater Element is available for immediate purchase, ideal for industrial motor protection applications.
