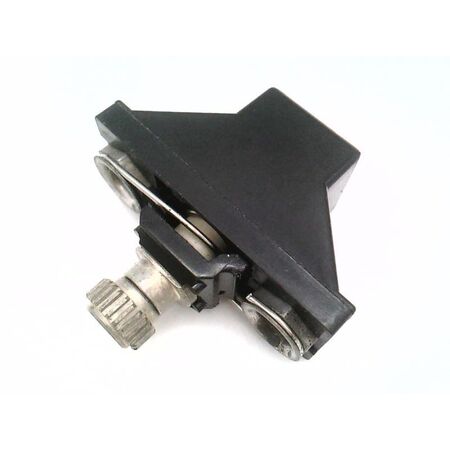

Overload Relay Heater Element W25 | Eutectic Alloy | Class 20 Protection | by Allen-Bradley
The Overload Relay Heater Element W25 is designed for reliable performance in industrial motor protection applications. Constructed from eutectic alloy, it features a Class 20 protection rating and is compatible with amps ranging from 0.73 to 0.86 A. Ideal for use with Bulletin Series 100/500/609/1200 overload relays, this heater element ensures optimal safety and efficiency in electrical systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: W
- Material: Eutectic alloy
- Protection Class: 20
- Compatible Amps: 0.73 to 0.86 A
- Compatible Sizes: 0, 1, 00, 24A, 32A, 40A
- Ambient Temperature Rating: 40°C
- Certification: NEMA certified
- Dimensions (H x L x W): 20mm x 80mm x 50mm
- Weight: 0.1 kg
Key Features
- Eutectic alloy construction for reliable performance
- Class 20 protection rating
- Designed for use with amps between 0.73 to 0.86 A
- Compatible with sizes 0, 1, 00, 24A, 32A, or 40A
- NEMA certified for quality assurance
- Operates at ambient temperatures up to 40°C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper integration with overload relay systems.
Applications
- Use with Bulletin Series 100/500/609/1200 overload relays
- Suitable for electrical motor protection in industrial settings
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances motor protection to prevent energy waste and equipment damage
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley W25 Overload Relay Heater Element is available for immediate purchase, ideal for industrial motor protection applications.
