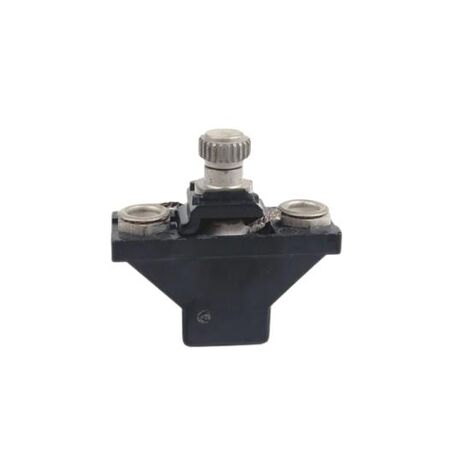

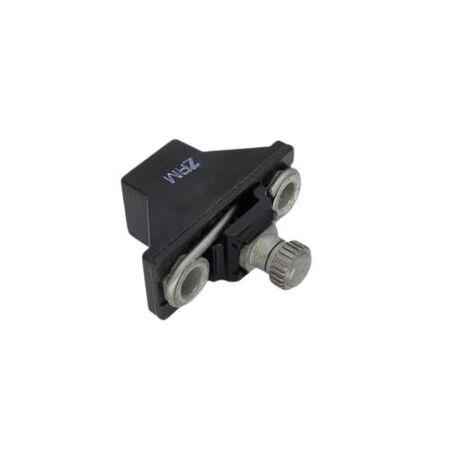

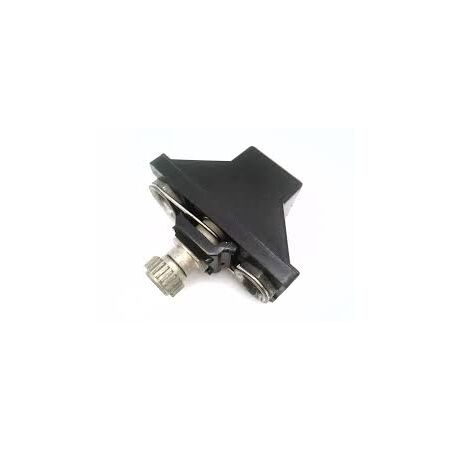

Overload Relay Heater Element W53 | Eutectic Alloy | Class 20 | by Allen-Bradley
The Overload Relay Heater Element W53 is crafted from eutectic alloy, ensuring reliable performance for industrial motor protection. Designed for amp ratings from 9.7 to 13.3, it integrates seamlessly with Bulletin Series 100, 500, 609, and 1200 overload relay systems. Ideal for qualified electricians, this heater element operates efficiently at 40°C, making it a crucial component in electrical control panels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: W
- Material: Eutectic alloy
- Class: 20
- Compatible with Bulletin Series: 100, 500, 609, 1200
- Amp range: 9.7 to 13.3 at sizes 0, 1, 1P, 00, 24A, 32A, 40A, 68A
- Amp range: 10.2 to 11.9 at size 2
- Specific amp ratings: 11.6A for 592-BOV16, 11.7A for 592-COV16
- Operating temperature: 40°C
- Dimensions (H x L x W): 20mm x 100mm x 50mm
- Weight: 0.1 kg
Key Features
- Eutectic alloy construction for reliable performance
- Class 20 overload relay heater element
- Designed for amp ratings from 9.7 to 13.3 at various sizes
- Operates at 40 degrees Celsius temperature
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper integration with overload relay systems.
Applications
- Industrial motor protection
- Overload relay systems in electrical control panels
- Compatible with Bulletin Series 100, 500, 609, 1200
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
Warranty Information
Radwell 2-year warranty included. Factory warranty does not apply.
Available Now
The Allen-Bradley W53 Overload Relay Heater Element is available for immediate purchase, ideal for industrial motor protection applications.
