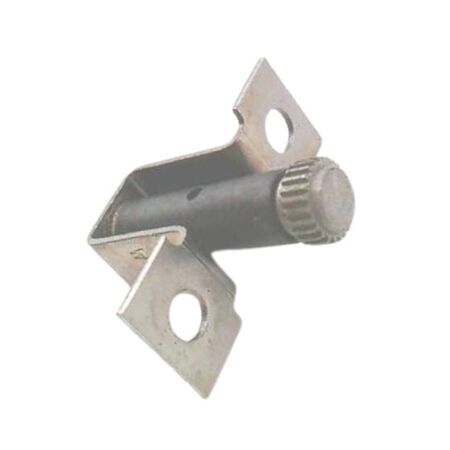

Overload Relay Heater Element W72 | Eutectic Alloy | Compatible with Bulletin Series 100/500/609/1200 | by Allen-Bradley
The Overload Relay Heater Element W72 is designed for reliable thermal performance in industrial motor protection applications. Made from durable eutectic alloy, it supports various amp ratings and is compatible with Bulletin Series 100, 500, 609, and 1200 overload relays. Ideal for electrical control panels, this heater element ensures optimal protection and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: W Type
- Material: Eutectic Alloy
- Compatible with Bulletin Series: 100, 500, 609, 1200
- Amp Ratings: 45-47A (Size 2), 62-73A (Size 3), 67-74A (Size 4)
- Size Compatibility: 62/68/120/125/165/184A at 56/71/78/67/72/80 amps
- Compatible Relay Models: 592-BOV16, COV16, EOV16 at 60/70/74 amps
- Dimensions (H x L x W): 20mm x 100mm x 50mm
- Weight: 0.3 kg
Key Features
- Eutectic alloy construction for reliable thermal performance
- Designed for use with Bulletin Series 100/500/609/1200 overload relays
- Supports various amp ratings depending on size: 45-47A (Size 2), 62-73A (Size 3), 67-74A (Size 4)
- Compatible with sizes 62/68/120/125/165/184A at specified amp ratings
- Suitable for 592-BOV16/COV16/EOV16 relays at 60/70/74 amps
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper integration with overload relay systems and compliance with electrical safety standards.
Applications
- Industrial motor protection
- Overload relay systems in electrical control panels
- Compatible with Bulletin Series 100, 500, 609, 1200
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances motor protection to prevent energy waste from motor damage
- Durable eutectic alloy extends product life, reducing replacement frequency
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley W72 Overload Relay Heater Element is available for immediate purchase, ideal for industrial motor protection and control panel applications.
