Overload Relay Heater Element W80 | Eutectic Alloy | Class 20 | by Allen-Bradley
Overload Relay Heater Element W80 | Eutectic Alloy | Class 20 | by Allen-Bradley
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

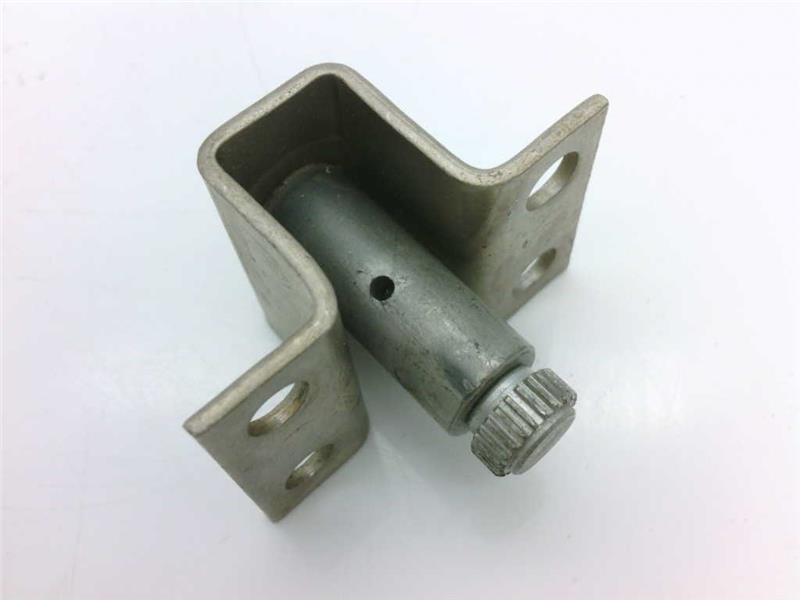

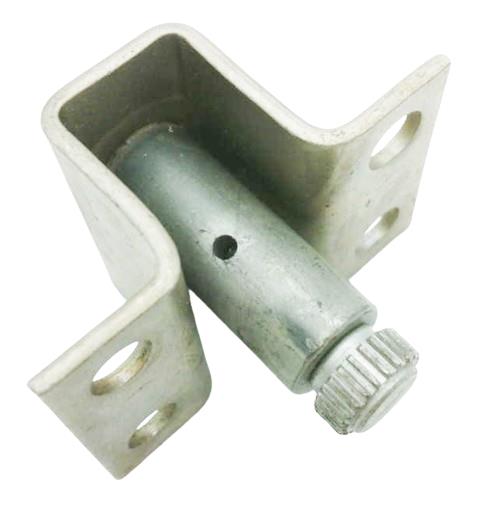

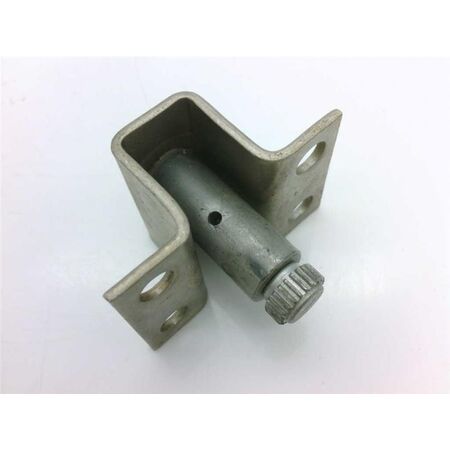

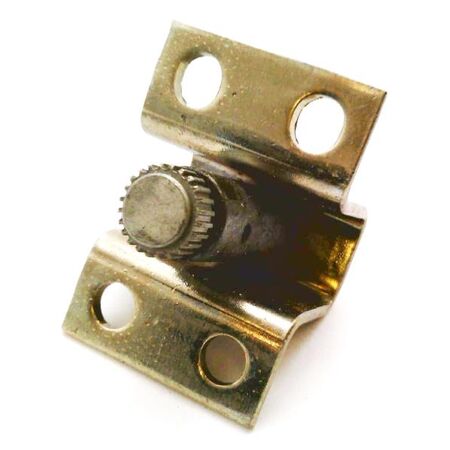

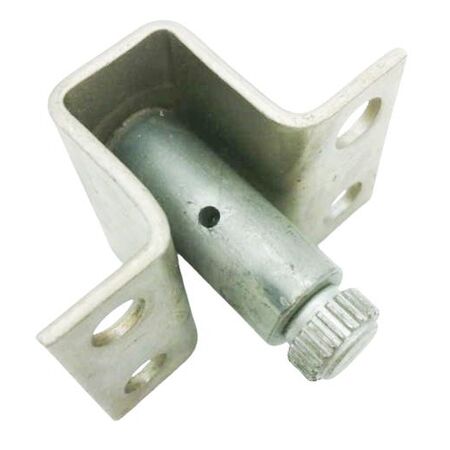

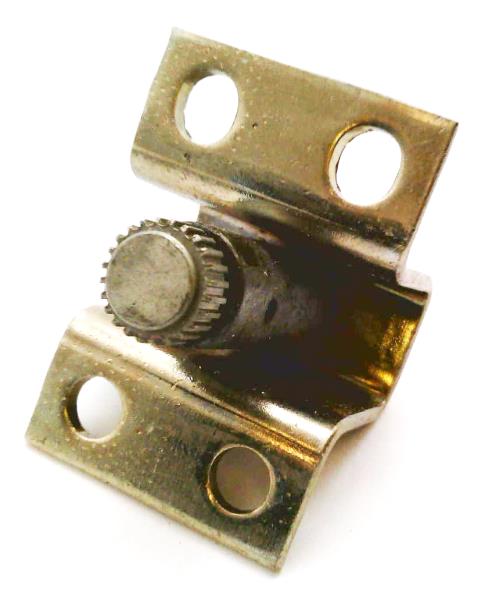

Product Name/Title: Allen-Bradley W80 Overload Relay Heater Element
Brand: Allen-Bradley
SKU: W80
Alternatively Known As: Overload Relay Heater, W80 Heater Element, Allen-Bradley Heater Element
Technical Specifications
- Class 20 overload relay heater element
- Eutectic alloy material
- Compatible with Bulletin Series 100, 500, 609, 1200
- Amp ratings: 112-135A at size 4, 108A at size 125A, 123A at size 165A, 143A at size 184A
- 120A at 592-DOV16, 128A at 592-EOV16
- Operating temperature: 40 degrees Celsius
- Dimensions (H x L x W): 20mm x 100mm x 50mm
- Weight: 0.3 kg
Key Features
- Eutectic alloy construction for reliable performance
- Class 20 overload relay heater element
- Designed for specific amp ratings across various sizes
- Operates at 40 degree temperature
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper integration with overload relay systems.
Applications
- Industrial motor protection
- Overload relay systems in electrical control panels
- Compatible with Bulletin Series 100, 500, 609, 1200
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley W80 Overload Relay Heater Element is available for immediate purchase, ideal for industrial motor protection applications.
