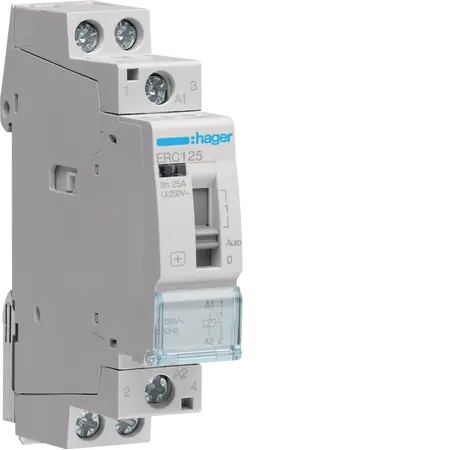

Override Contactor 25A | 230V AC | High Mechanical Endurance | Compact Design by Hager

BRAND: :hager
SKU: ERC125
$61.50 List price: $78.60
+ −
30 Days Return Delivery Options
Override contactor with 25A rated current and 230V AC command voltage—ideal for residential, commercial, and industrial control systems. Built for high mechanical endurance with 100,000 operations and compact 1-module width.

Product Name/Title: Override Contactor 25A, 1NO, 230V~50Hz

Brand: Hager

SKU: ERC125

Alternatively Known As: Contactor Switch 25A

Technical Specifications
  • Connection Type: 1NO
  • Number of Contacts: 1
  • Cross-section flexible conductor: 1 - 6 mm²
  • Cross-section rigid conductor: 1 - 10 mm²
  • Rated current: 25 A
  • Number of modules: 1
  • Frequency: 50 - 50 Hz
  • Rated impulse withstand voltage Uimp: 4000 V
  • Rated insulation voltage Ui: 250 V
  • Command voltage AC: 230 - 230 V
  • Command voltage DC: 0 - 0 V
  • Operating temperature: -10 - 50 °C
  • Storage/transport temperature: -40 - 80 °C
  • Number of mechanical operations: 100000
  • Electric endurance in number of cycles: 30000
  • Total power loss under IN: 2.50 W
  • Inrush power absorbed: 10.70 VA
  • Nominal tightening torque: 1.20 - 1.20 Nm
  • Dimensions (H x L x W): 83mm x 60mm x 17.85mm
  • Weight: 0.25 kg
Key Features
  • Rated current of 25 A
  • 230 V AC command voltage
  • High mechanical endurance of 100,000 operations
  • Compact width of 1 module
Professional Installation Requirements
  • Professional installation by a certified electrician is necessary to ensure proper function and safety.
Applications
  • Residential: Automatic control circuits in homes
  • Commercial: Office lighting control systems
  • Industrial: Equipment control and automation
Standards & Compliance
  • Conforms to relevant Australian electrical safety standards.
Environmental Benefits
  • Energy-efficient design minimizes power loss.
Warranty Information

1-year manufacturer's warranty against defects.

Available Now

The Override Contactor 25A from Hager is available for immediate purchase, ideal for efficiently managing various control applications.

ERC125 (ERC125, 123 Kb) [Download]

reach_declaration_ERC1256.pdf (reach_declaration_ERC1256.pdf, 103 Kb) [Download]

rohs_declaration_ERC1256.pdf (rohs_declaration_ERC1256.pdf, 104 Kb) [Download]

DECLARATION_21_3000_09_21.pdf (DECLARATION_21_3000_09_21.pdf, 383 Kb) [Download]

DECLARATION_21_1376_05_21.pdf (DECLARATION_21_1376_05_21.pdf, 221 Kb) [Download]
