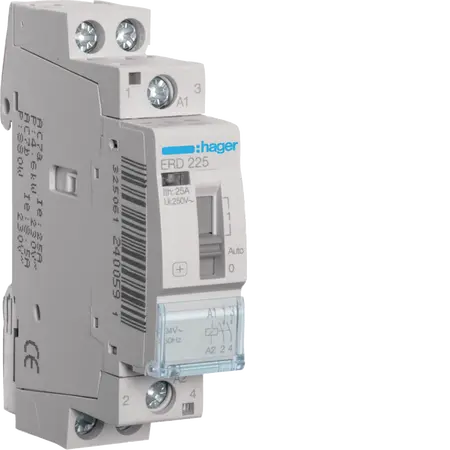

Override Contactor 25A | 2NO Contacts | 24V 50Hz | Compact Design by Hager

BRAND: :hager
SKU: ERD225
$91.00 List price: $116.30
+ −
30 Days Return Delivery Options
Override contactor with 25A rated current and 2 normally open contacts—ideal for commercial and industrial electrical installations. Built for robust circuit management, with compatibility for flexible and rigid conductor connections.

Product Name/Title: Override Contactor 25A, 2NO, 24V~50Hz

Brand: Hager

SKU: ERD225

Alternatively Known As: 24 Volt Contactor

Technical Specifications
  • Type of contacts: 2NO
  • Rated current: 25 A
  • Cross-section flexible conductor: 1 - 6 mm²
  • Cross-section rigid conductor: 1 - 10 mm²
  • Rated impulse withstand voltage Uimp: 4000 V
  • Rated insulation voltage Ui: 250 V
  • Command voltage AC: 24 - 24 V
  • Frequency: 50 - 50 Hz
  • Operating temperature: -10 - 50 °C
  • Storage/transport temperature: -40 - 80 °C
  • Number of mechanical operations: 100000
  • Electric endurance in number of cycles: 30000
  • Total power loss under IN: 4 W
  • Inrush power absorbed: 10.70 VA
  • Number of NO contacts: 2
  • Nominal tightening torque: 1.20 Nm
  • Dimensions (H x L x W): 83mm x 60mm x 17.85mm
  • Weight: 0.2 kg
Key Features
  • Rated current: 25A for robust electrical applications
  • 2 normally open contacts for effective circuit management
  • Compatible with flexible and rigid conductor connections
Professional Installation Requirements
  • Professional installation by a licensed electrician is necessary to ensure proper function and safety.
Applications
  • Commercial electrical installations requiring contactors
  • Industrial automation systems
  • Building services
Standards & Compliance
  • Complies with relevant AS/NZS standards for electrical safety and performance
Environmental Benefits
  • Designed for efficient power usage with a total power loss of 4W
  • Long electric endurance in number of cycles contributes to reduced waste
Warranty Information

1-year warranty from date of purchase against manufacturing defects.

Available Now

The Hager Override Contactor 25A, 2NO, 24V is available now for immediate purchase. Ideal for use in electrical panels and control systems.

ERD225 (ERD225, 137 Kb) [Download]

reach_declaration_ERD2256.pdf (reach_declaration_ERD2256.pdf, 103 Kb) [Download]

rohs_declaration_ERD2256.pdf (rohs_declaration_ERD2256.pdf, 104 Kb) [Download]

(CONTACTORS.pdf, 197 Kb) [Download]

(DECLARATION_21_3000_09_21.pdf, 383 Kb) [Download]

(DECLARATION_21_1376_05_21.pdf, 221 Kb) [Download]
