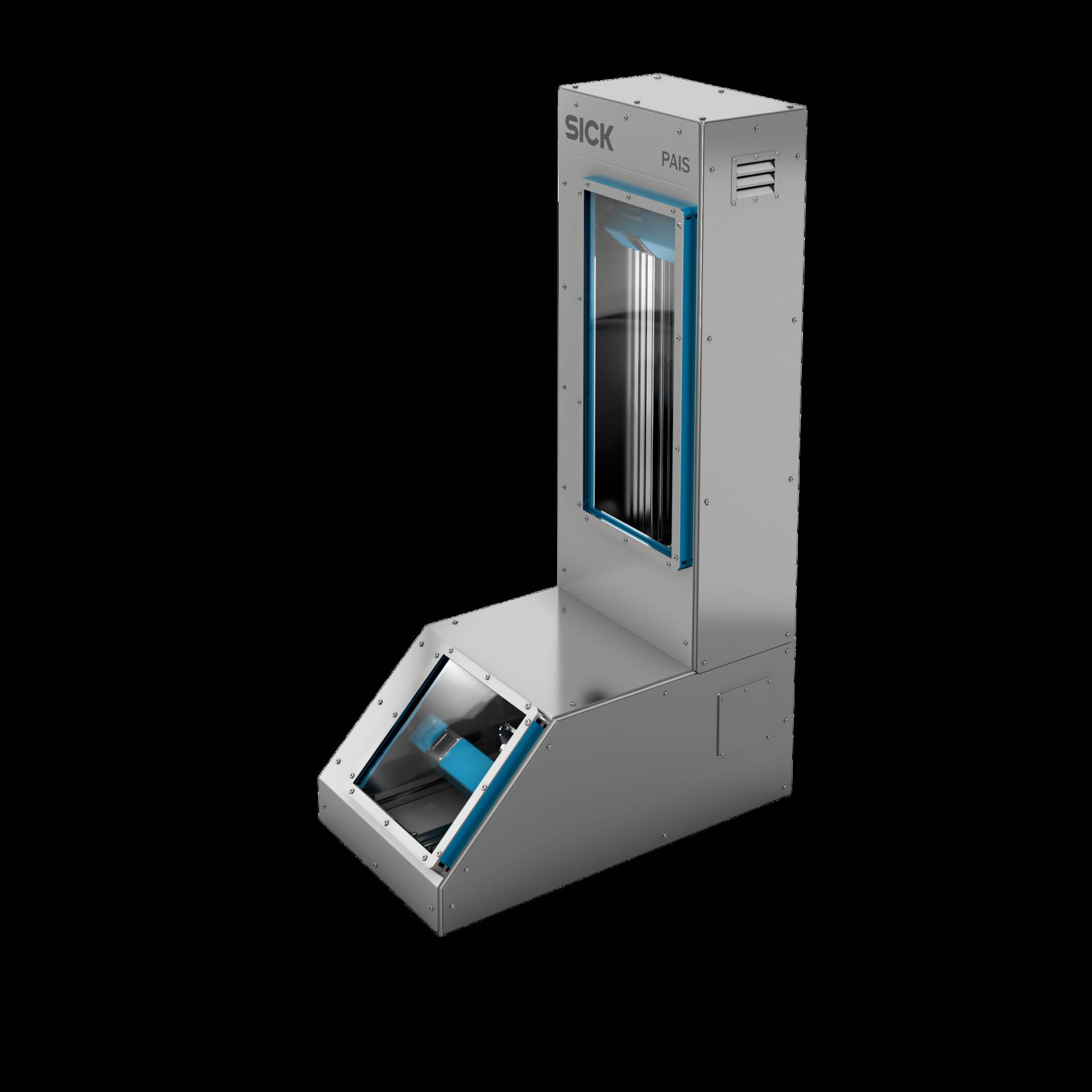

Pallet Integrity Inspection System | 3D Cameras & Dual Line Lasers | Customizable Defect Limits | by SICK
The Pallet Integrity Inspection System utilizes advanced 3D cameras and dual line lasers for non-contact quality control, ensuring accurate scanning of pallets from all angles. Ideal for industrial and warehousing applications, this system features customizable defect limits and intuitive software for efficient operation. Enhance your quality assurance processes and reduce waste with early defect detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pallet Integrity Inspection System | 3D Cameras & Dual Line Lasers | Customizable Defect Limits | by SICK
Brand: SICK
SKU: 1139347
Alternatively Known As: Pallet Defect Detection System, Pallet Quality Inspection System, Automated Pallet Scanner
Technical Specifications
- 3D cameras and dual line lasers (class 2) enable scanning during throughput
- Customizable limits for each defect type and individual pallet elements
- Intuitive software operation with warning messages and notifications
- System dimensions: 722 mm x 461 mm x 1208 mm (Single tower)
- Control cabinet dimensions: 665 mm x 356 mm x 786 mm
- Heavy-Duty variant
- Dimensions (H x L x W): 1208mm x 722mm x 461mm
- Weight: 50 kg
Key Features
- Non-contact quality control using 3D cameras and dual line lasers (class 2)
- Scans top, sides, bottom, and inside of pallets quickly and accurately
- Customizable defect limits for different pallet types and elements
- Intuitive software with warning messages and notifications
- Space-saving and optional dirt-proof system construction
- Supports creation and modification of individual pallet inspection types
Professional Installation Requirements
- Installation and setup should be performed by qualified professionals familiar with industrial quality control systems and electrical safety standards.
Applications
- Industrial: Pallet quality control in manufacturing and logistics
- Warehousing: Inspection of Euro pallets for damage prevention
- Quality Assurance: Automated defect detection in pallet handling
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Prevents damage to goods and reduces waste by early detection of pallet defects
- Non-contact inspection reduces need for manual handling and associated energy use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK Pallet Integrity Inspection System is available for immediate purchase, ideal for industrial and warehouse quality control applications.
