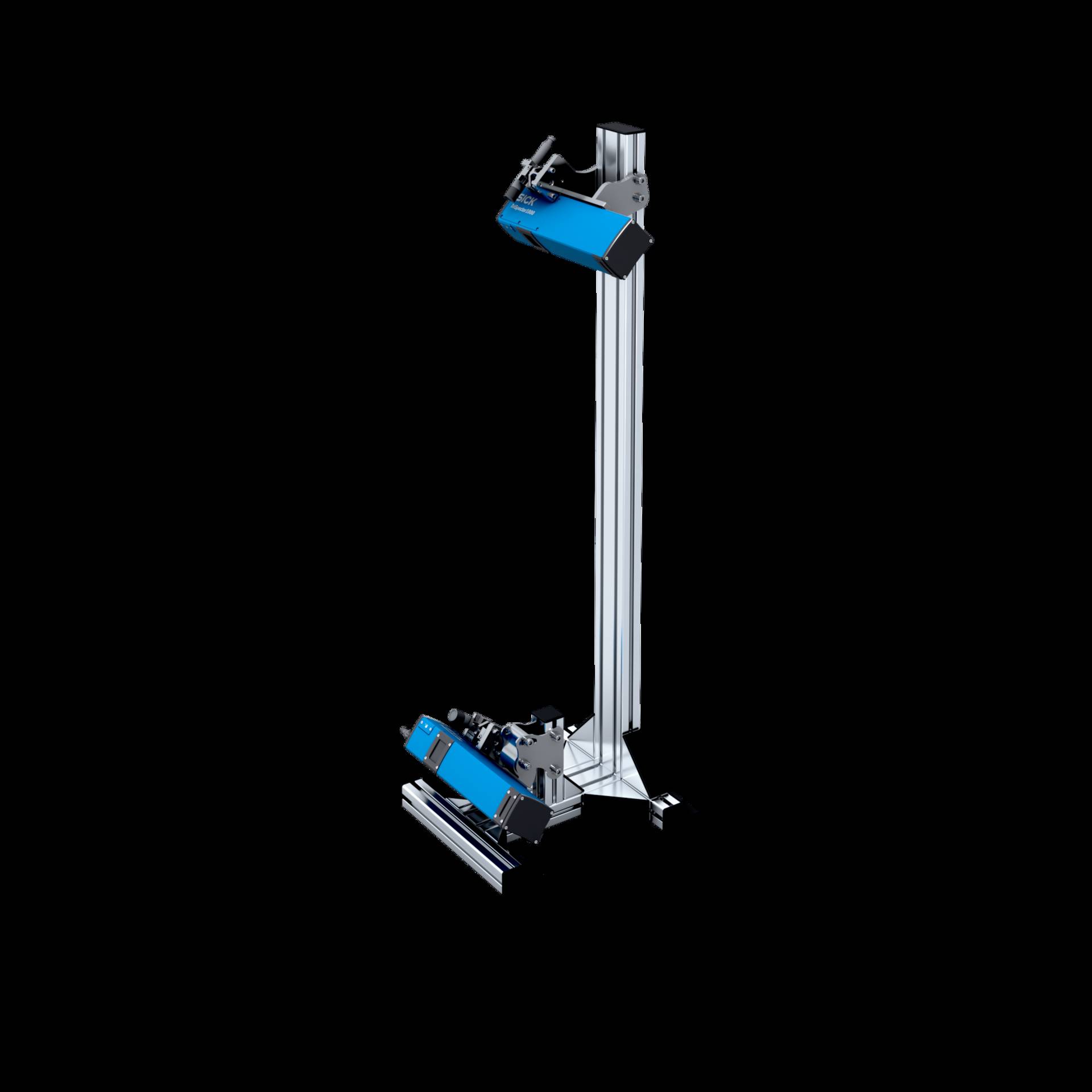

Pallet Integrity Inspection System | 3D Cameras & Dual Line Lasers | Customizable Defect Detection | by SICK
The Pallet Integrity Inspection System utilizes advanced 3D cameras and dual line lasers for non-contact quality control, ensuring accurate inspection of Euro pallets for defects. Ideal for logistics and warehousing, this system features customizable defect limits and intuitive software with notifications, promoting efficient operations and reducing waste.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pallet Integrity Inspection System | 3D Cameras & Dual Line Lasers | Customizable Defect Detection | by SICK
Brand: SICK
SKU: 1144858
Alternatively Known As: Pallet Defect Detection System, Pallet Quality Inspection System, Euro Pallet Scanner, 3D Pallet Inspection System
Technical Specifications
- 3D cameras and dual line lasers (class 2) for scanning during throughput
- Customizable defect detection limits
- Intuitive software with warning and notification features
- System dimensions: 645 mm x 346 mm x 1169 mm
- Control cabinet dimensions: 665 mm x 356 mm x 786 mm
- Variant: Light
- Dimensions (H x L x W): 1169mm x 645mm x 346mm
- Weight: 50 kg
Key Features
- Non-contact quality control using 3D cameras and dual line lasers (class 2)
- Scans top, sides, bottom, and inside of pallets quickly and accurately
- Customizable defect limits for each defect type and individual pallet elements
- Intuitive software operation with warning messages and notifications
- Space-saving and optional dirt-proof system construction
- Supports custom inspection and pallet types
Professional Installation Requirements
- Professional installation by qualified technicians is recommended to ensure proper system calibration and integration with existing quality control processes.
Applications
- Quality control in logistics and warehousing
- Inspection of Euro pallets for damage and defects
- Prevention of accidents and damage to goods during transport
- Customizable inspection for various pallet types and defects
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Prevents damage to goods, reducing waste and loss
- Enables early detection of pallet defects, promoting reuse and recycling of pallets
- Non-contact inspection reduces need for manual handling and associated energy use
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK Pallet Integrity Inspection System is available for immediate purchase, ideal for logistics, warehousing, and manufacturing environments requiring reliable pallet defect detection.
