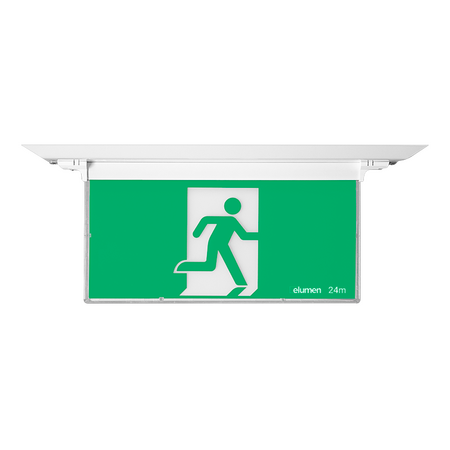

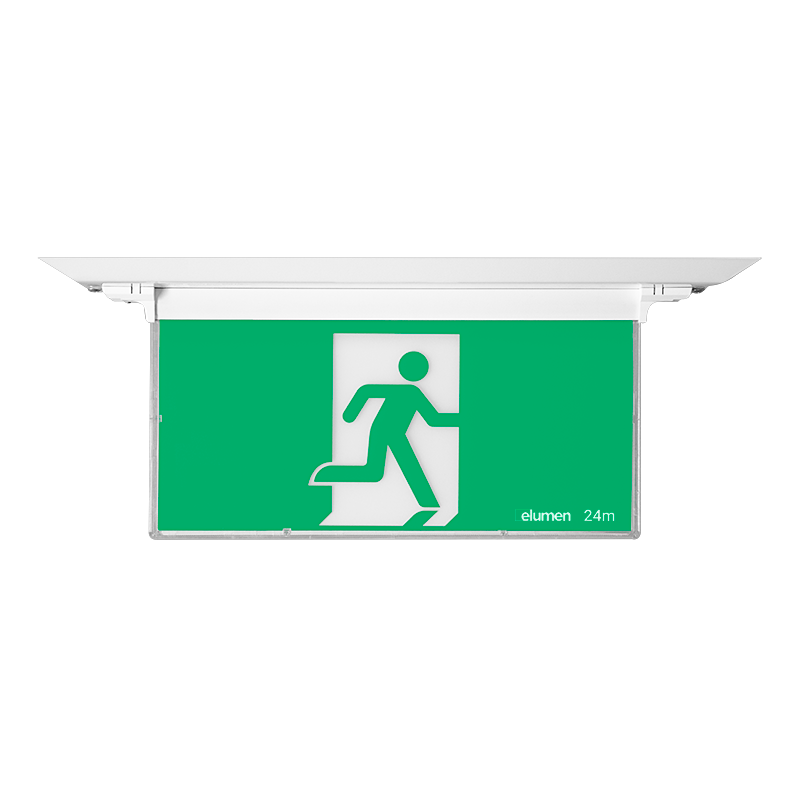

PalmLED Recessed Emergency Blade Exit Sign | 24m Viewing Distance | LED with Side Lighting | Maintained Mode | by Elumen
The PalmLED Recessed Emergency Blade Exit Sign features a combined 24m viewing distance and built-in side LEDs that activate during power loss, ensuring visibility in emergencies. Ideal for commercial buildings, hospitals, and public spaces, this energy-efficient sign boasts a long LED lamp lifetime of 100,000 hours, making it a reliable choice for safety compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PalmLED Recessed Emergency Blade Exit Sign | 24m Viewing Distance | LED with Side Lighting | Maintained Mode | by Elumen
Brand: Elumen
SKU: PALM-EM
Alternatively Known As: Recessed Emergency Exit Sign, LED Blade Exit Sign, Emergency Exit Light, Emergency Exit Signage
Technical Specifications
- Voltage: 220 - 240VAC
- Frequency: 50Hz
- Power Consumption: 4W max, 2.2W standby
- Ambient Temperature Range: 1°C - 40°C
- IP Rating: IP20
- Mounting Type: Recessed
- Operating Mode: Maintained
- Charger Type: Smart Charger
- LED Lamp Lifetime: 100,000 hours
- Emergency Classification: C0:D32, C90:D25
- Viewing Distance: 24m
- Dimensions (H x L x W): 194mm x 150mm x 490mm
- Weight: 2 kg
Key Features
- Combined 24m viewing distance exit sign with emergency lighting coverage
- LED recess-mount blade exit sign with built-in side LEDs activating on power loss
- Easy installation with flex and plug cable
- Includes all directional pictograms
- White powder coated steel body with acrylic decal
- Maintained operating mode with smart charger
- Long LED lamp lifetime of 100,000 hours
- Emergency classification C0:D32, C90:D25
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with safety standards and optimal performance.
Applications
- Commercial buildings: offices, shopping centers, hotels
- Public spaces: hospitals, schools, airports
- Industrial facilities requiring emergency exit signage
Standards & Compliance
- AS/NZS 2293 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifespan minimizes waste and replacement frequency
Warranty Information
3 years warranty.
Available Now
The Elumen PalmLED Recessed Emergency Blade Exit Sign is available for immediate purchase, ideal for commercial and public building emergency exit signage.
