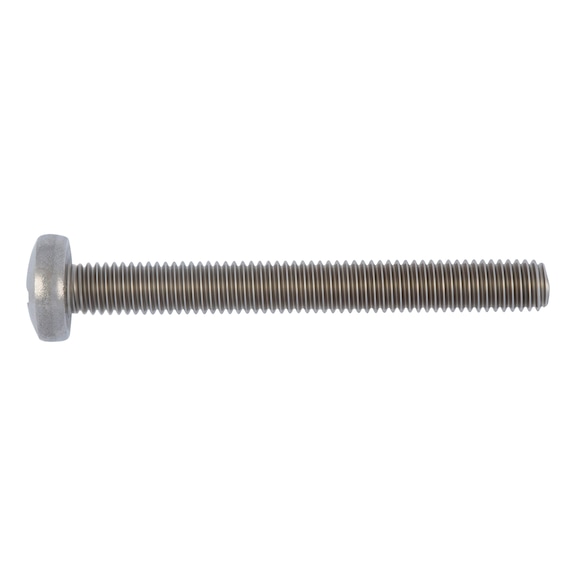

Pan Head Screw Imperial ASME B1863 | 18-8 Stainless Steel | H Cross Recess | UNC Thread | @Pack of 25 | by Wurth
Pan Head Screw Imperial ASME B1863 is crafted from durable 18-8 stainless steel, ensuring excellent corrosion resistance. With an H cross recess for secure fastening and UNC thread compatibility, this screw is perfect for mechanical assemblies, industrial equipment, and general-purpose fastening in metal and wood. Ideal for professionals seeking reliable and compliant fasteners.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pan Head Screw Imperial ASME B1863 | 18-8 Stainless Steel | H Cross Recess | UNC Thread | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 7101314200
Alternatively Known As: Imperial Pan Head Screw, Stainless Steel Pan Head Bolt, UNC Thread Pan Head Screw, ASME B18.6.3 Pan Head Screw

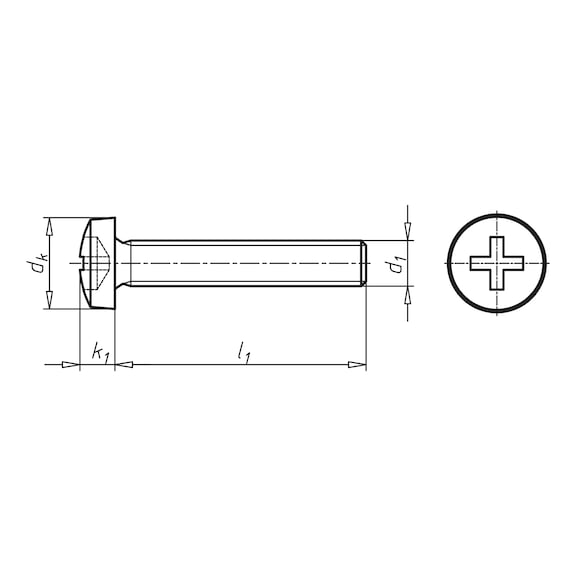

Technical Specifications
- Nominal diameter: 1/4 inch (6.35 mm)
- Length: 2 inch (50.8 mm)
- Head diameter: 0.4800 inch (12.19 mm)
- Head height: 0.1630 inch (4.14 mm)
- Internal drive: H cross recess
- Standards: ASME B18.6.3
- Material: Stainless steel AISI 304 (18-8)
- Surface finish: Plain
- Thread type: UNC
- RoHS-compliant: Yes
- Head type: Pan head
- Drive type: H
- Dimensions (H x L x W): 4.14mm x 50.8mm x 6.35mm
- Weight: 0.01 kg
Key Features
- Made from stainless steel AISI 304 (18-8) for corrosion resistance
- Pan head design for a smooth, rounded finish
- H cross recess internal drive for secure fastening
- UNC thread type compatible with imperial standards
- Plain surface finish
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper torque and fastening integrity.
Applications
- Mechanical assemblies requiring corrosion-resistant fasteners
- Industrial equipment and machinery
- Automotive and aerospace components
- General purpose fastening in metal and wood
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation) for electrical fasteners where applicable
- Complies with ASME B18.6.3 as the primary standard for pan head screws
Environmental Benefits
- Made from stainless steel which is recyclable and durable, reducing waste
- RoHS-compliant ensuring no hazardous substances are used
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
The Wurth Pan Head Screw Imperial ASME B1863 Stainless Steel 18-8 H Cross Recess UNC 1/4"x2" is available for immediate purchase, ideal for industrial, automotive, and general fastening applications.
