Pan Head Screw Imperial ASME B1863 | 18-8 Stainless Steel | H Cross Recess | UNC Thread | @Pack of 25 | by Wurth
Pan Head Screw Imperial ASME B1863 made from 18-8 stainless steel offers exceptional corrosion resistance and durability. Featuring an H cross recess for secure driving and UNC thread compatibility, this screw is perfect for mechanical assemblies, industrial equipment, and general fastening in metal and wood. Ideal for professionals seeking reliable and compliant fasteners.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pan Head Screw Imperial ASME B1863 | 18-8 Stainless Steel | H Cross Recess | UNC Thread | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 7101314075
Alternatively Known As: Imperial Pan Head Screw, UNC Thread Screw, Stainless Steel Pan Head Bolt, ASME B18.6.3 Screw

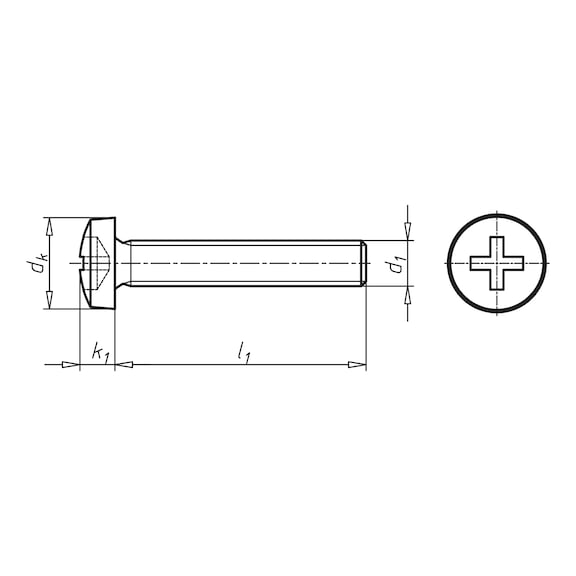

Technical Specifications
- Nominal diameter: 1/4 inch (6.35 mm)
- Length: 0.75 inch (19.05 mm)
- Head diameter: 0.4800 inch (12.19 mm)
- Head height: 0.1630 inch (4.14 mm)
- Internal drive: H cross recess
- Material: Stainless steel AISI 304 (18-8)
- Surface finish: Plain
- Thread type: UNC
- Standards: ASME B18.6.3
- RoHS-compliant: Yes
- Dimensions (H x L x W): 4mm x 19mm x 12mm
- Weight: 0.02 kg
Key Features
- Made from stainless steel AISI 304 (18-8) for corrosion resistance
- Pan head design with H cross recess for secure drive
- UNC thread type compatible with imperial standards
- Plain surface finish
- RoHS-compliant
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper fastening and safety.
Applications
- Mechanical assemblies requiring corrosion-resistant fasteners
- Industrial equipment and machinery
- Automotive and aerospace components
- General purpose fastening in metal and wood
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Corrosion resistance extends product life reducing waste
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Pan Head Screw Imperial ASME B1863 Stainless Steel UNC Thread is available for immediate purchase, ideal for industrial, mechanical, and general fastening applications.
