Pan Head Screw Imperial ASME B1863 | 18-8 Stainless Steel | H Cross Recess | UNC Thread | @Pack of 50 | by Wurth
The Pan Head Screw Imperial ASME B1863 is crafted from 18-8 stainless steel, ensuring exceptional corrosion resistance. With an H cross recess drive type and UNC thread, it's perfect for mechanical assemblies and industrial applications. Ideal for both metal and plastic fastening, this pack of 50 screws guarantees durability and reliability in your projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pan Head Screw Imperial ASME B1863 | 18-8 Stainless Steel | H Cross Recess | UNC Thread | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 7101310037
Alternatively Known As: Imperial Pan Head Screw, Stainless Steel Pan Head Bolt, UNC Thread Pan Head Screw, ASME B18.6.3 Pan Head Screw

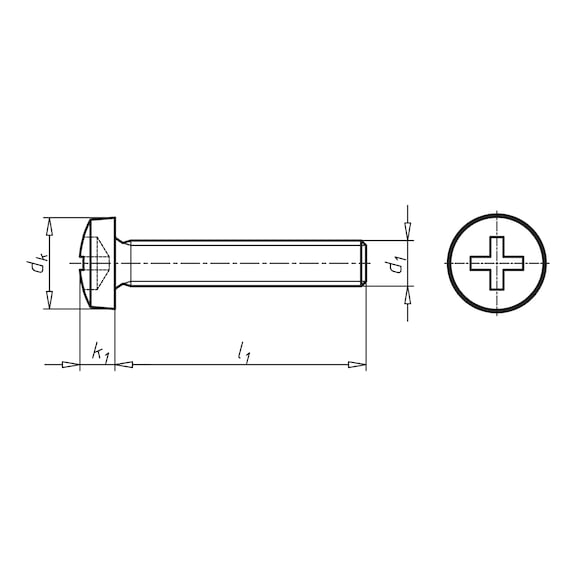

Technical Specifications
- Nominal diameter: 3/16 inch (4.76 mm)
- Length: 0.375 inch (9.53 mm)
- Head diameter: 0.3620 inch (9.2 mm)
- Head height: 0.1280 inch (3.25 mm)
- Internal drive: H cross recess
- Material: Stainless steel AISI 304 (18-8)
- Surface finish: Plain
- Thread type: UNC
- Standards: ASME B18.6.3
- RoHS-compliant: Yes
- Head type: Pan head
- Drive type: H
- Dimensions (H x L x W): 3.25mm x 9.53mm x 9.2mm
- Weight: 0.005 kg
Key Features
- Made from stainless steel AISI 304 (18-8) for corrosion resistance
- Pan head design for a smooth, rounded finish
- H cross recess drive type for secure fastening
- UNC thread type compatible with imperial standards
- Plain surface finish
- RoHS-compliant
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper torque and fastening integrity.
Applications
- Mechanical assemblies requiring corrosion-resistant fasteners
- Industrial equipment and machinery
- Automotive and aerospace components
- General purpose fastening in metal and plastic
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Corrosion resistance extends product life reducing waste
- RoHS compliance ensures no hazardous substances
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
The Wurth Pan Head Screw Imperial ASME B1863 Stainless Steel 18-8 H Cross Recess UNC is available for immediate purchase, ideal for industrial and mechanical fastening applications.
