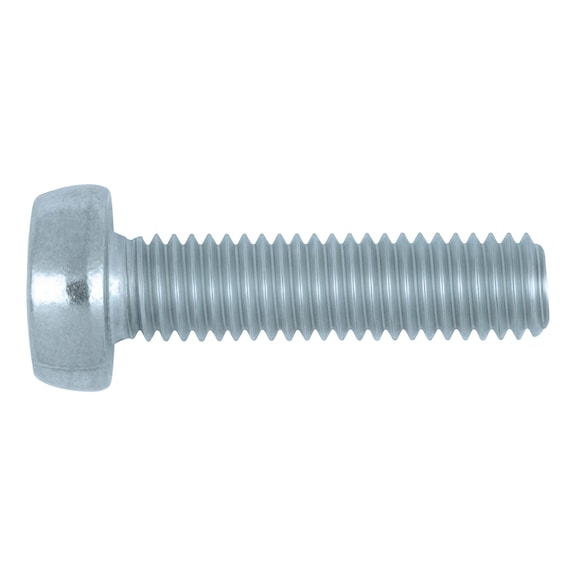

Pan Head Screw ISO 14583 | Hexalobular TX25 Drive | Zinc-Plated Blue Passivated | @Pack of 50 | by Wurth
Pan Head Screw ISO 14583 with Hexalobular TX25 drive and zinc-plated blue passivated finish — ideal for secure fastening in mechanical assemblies. Built for industrial machinery and automotive applications, these screws ensure optimal force distribution and reduced tool wear, making them a reliable choice for engineers and technicians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pan Head Screw ISO 14583 | Hexalobular TX25 Drive | Zinc-Plated Blue Passivated | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 40041516
Alternatively Known As: Hexalobular screw, Torx screw, TX25 pan head screw, ISO 14583 screw, Zinc plated hexalobular screw

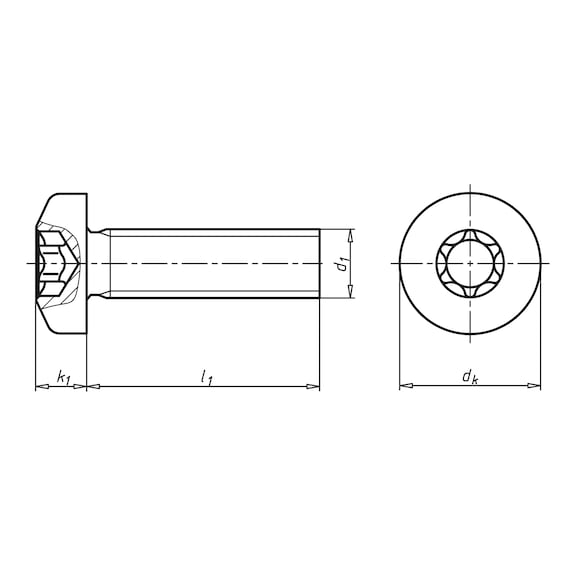

Technical Specifications
- Thread type x nominal diameter: M5
- Length: 16 mm
- Head diameter: 9.5 mm
- Head height: 3.7 mm
- Standards: ISO 14583
- Material: Steel
- Property class: 8.8
- Surface: Zinc plated, blue passivated
- RoHS-compliant: Yes
- Head type: Flat pan head
- Drive type: Internal hexalobular (TX25)
- Thread type: Metric thread
- Pitch: 0.8 mm
- Thread form: Standard metric thread
- Shank diameter: 5 mm
- Product class: A
- Dimensions (H x L x W): 3.7mm x 16mm x 9.5mm
- Weight: 0.01 kg
Key Features
- Hexalobular (TX) drive transmits force over a large surface area across the flanks of the drive
- Reduced tool wear due to optimal force distribution
- Prevents tool slipping and damage to surface coating
- No wobbling, screw locates securely
- Complies with DIN EN ISO 10664 standard
- Standardized hexalobular heads for global use
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper torque and fastening integrity.
Applications
- Mechanical assembly requiring secure fastening
- Industrial machinery and equipment
- Automotive and aerospace components
- General engineering and construction
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
Wurth Pan Head Screw with Hexalobular Head ISO 14583 Steel 8.8 Zinc-Plated Blue Passivated 50 PCS is available for immediate purchase, ideal for industrial and mechanical assembly applications.
