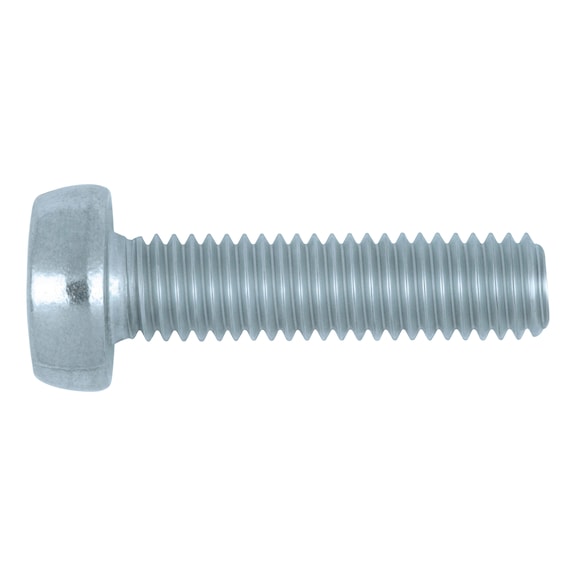

Pan Head Screw ISO 14583 | Hexalobular Drive | Zinc-Plated & Blue Passivated | @Pack of 100 | by Wurth
Pan Head Screw ISO 14583 with Hexalobular drive and zinc-plated finish — ideal for secure fastening in mechanical assemblies. Built for industrial machinery and automotive applications, this screw features reduced tool wear and prevents slipping during installation, ensuring a reliable connection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pan Head Screw ISO 14583 | Hexalobular Drive | Zinc-Plated & Blue Passivated | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 40041430
Alternatively Known As: Hexalobular screw, Torx screw, TX20 pan head screw, ISO 14583 screw, Zinc plated hexalobular screw
Technical Specifications
- Thread type x nominal diameter: M4
- Length: 30 mm
- Head diameter: 8 mm
- Head height: 3.1 mm
- Standards: ISO 14583
- Material: Steel
- Property class: 8.8
- Surface: Zinc plated, blue passivated
- RoHS-compliant: Yes
- Head type: Flat pan head
- Drive type: Internal hexalobular (TX20)
- Thread type: Metric thread
- Pitch: 0.7 mm
- Thread form: Standard metric thread
- Shank diameter: 4 mm
- Product class: A
- Dimensions (H x L x W): 3.1mm x 30mm x 8mm
- Weight: 0.02 kg
Key Features
- Hexalobular (TX) drive transmits force over a large surface area across the flanks of the drive
- Reduced tool wear due to optimal force distribution
- Prevents tool slipping and wobbling
- No damage to surface coating during installation
- Screw locates securely in the joint
- Complies with DIN EN ISO 10664 standard for hexalobular drives
Professional Installation Requirements
- Installation by a qualified technician or assembler is recommended to ensure proper torque and secure fastening.
Applications
- Mechanical assembly requiring secure fastening
- Industrial machinery and equipment
- Automotive and aerospace components
- General engineering and construction
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life and reduces replacement frequency
Warranty Information
Wurth standard warranty against manufacturing defects applies.
Available Now
The Wurth Pan Head Screw with Hexalobular Head ISO 14583 is available for immediate purchase, ideal for industrial and mechanical assembly applications.
