Trade Discount 21%
Pan Head Screws with H Cross Recess | Stainless Steel AISI 316 | UNC Standard | @Pack of 25 | by Wurth
Pan head screws with H cross recess are crafted from stainless steel AISI 316, ensuring excellent corrosion resistance. Designed for UNC standard applications, these screws are perfect for industrial machinery assembly, marine equipment, and construction projects requiring durable fasteners. With a plain surface finish and RoHS compliance, they offer reliability in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pan Head Screws with H Cross Recess | Stainless Steel AISI 316 | UNC Standard | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 1902509619
Alternatively Known As: Pan head Phillips screws, Stainless steel UNC screws, H cross recess screws, A4-70 stainless steel screws
Technical Specifications

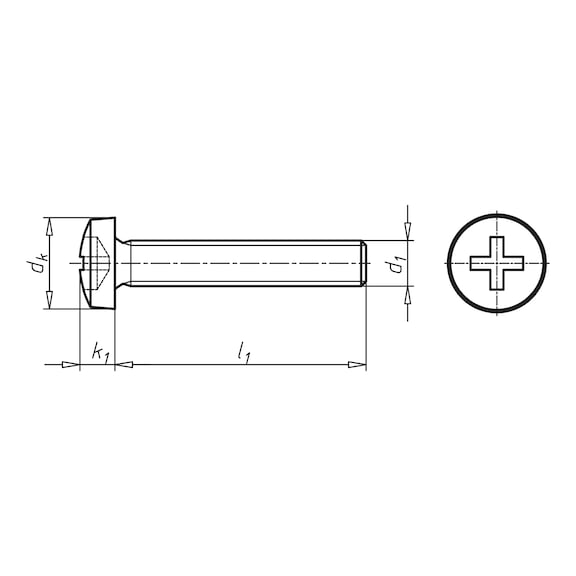

- Nominal diameter: 3/16 inch (4.76 mm)
- Length: 1.25 inch (31.75 mm)
- Head diameter: 0.362 inch (9.2 mm)
- Head height: 0.128 inch (3.25 mm)
- Internal drive: H cross recess (Phillips)
- Standards: ASME B18.6.3
- Material: Stainless steel AISI 316 (A4-70)
- Surface finish: Plain
- Thread type: UNC (Unified National Coarse)
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.25mm x 31.75mm x 9.2mm
- Weight: 0.02 kg
Key Features
- Made from stainless steel AISI 316 (A4-70) for excellent corrosion resistance
- Pan head with H cross recessed Phillips drive for secure fastening
- UNC standard thread for compatibility with imperial threaded components
- Plain surface finish
- RoHS-compliant
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper fastening and safety.
Applications
- Industrial machinery assembly
- Marine and outdoor equipment
- Construction requiring corrosion-resistant fasteners
- General purpose fastening in harsh environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Corrosion resistance extends product life reducing waste
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Wurth provides warranty against manufacturing defects as per company policy.
Available Now
Available for immediate purchase, ideal for industrial, marine, and construction applications requiring corrosion-resistant fasteners.
