Pan Head Screws with H Cross Recess | Stainless Steel AISI 316 | UNC Thread | @Pack of 25 | by Wurth
Pan head screws with H cross recess are crafted from stainless steel AISI 316, ensuring excellent corrosion resistance for marine and outdoor applications. Designed with a UNC thread, these screws are perfect for general fastening needs in industrial and mechanical assemblies. Ideal for professionals seeking reliable and durable fastening solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pan Head Screws with H Cross Recess | Stainless Steel AISI 316 | UNC Thread | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 1902509621
Alternatively Known As: Pan head Phillips screws, Stainless steel UNC screws, H cross recess screws, A4-70 stainless steel screws
Technical Specifications

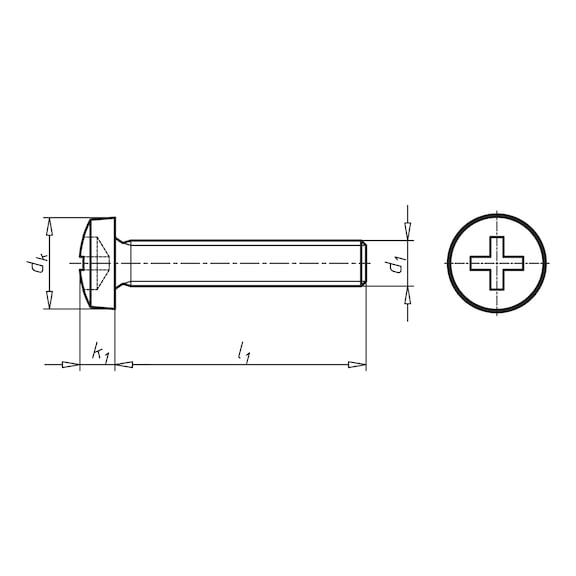

- Nominal diameter: 3/16 inch (4.76 mm)
- Length: 2 inch (50.8 mm)
- Head diameter: 0.362 inch (9.2 mm)
- Head height: 0.128 inch (3.25 mm)
- Internal drive: H cross recess (Phillips drive)
- Thread type: UNC (Unified National Coarse)
- Material: Stainless steel AISI 316 (A4-70)
- Surface finish: Plain
- Standards: ASME B18.6.3
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.25mm x 50.8mm x 9mm
- Weight: 0.01 kg
Key Features
- Made from stainless steel AISI 316 (A4-70) for excellent corrosion resistance
- Pan head design with H cross recessed Phillips drive
- UNC (Unified National Coarse) standard thread
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified professional or experienced technician is recommended to ensure proper fastening and safety.
Applications
- General fastening applications requiring corrosion-resistant screws
- Marine and outdoor environments due to stainless steel material
- Industrial and mechanical assemblies using UNC thread standards
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from durable stainless steel reducing the need for frequent replacements
- RoHS-compliant ensuring no hazardous substances are used
Warranty Information
Wurth provides standard warranty against manufacturing defects; please refer to Wurth's warranty policy for details.
Available Now
Wurth Pan Head Screws with H Cross Recess imperial size 3/16 x 2 inch are available for immediate purchase, ideal for industrial, marine, and general fastening applications.
