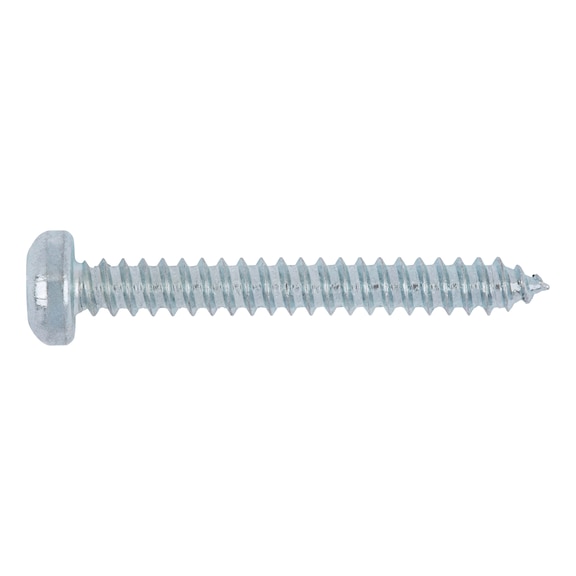

Pan Head Tapping Screw Shape C | AW Drive System | Zinc Plated | @Pack of 100 | by Wurth
Pan head tapping screws with AW drive system are perfect for general fastening applications across metal, plastic, and wood materials. Designed for enhanced torque transmission and longer service life, these screws ensure optimum centering and better resistance to corrosion with their zinc-plated finish. Ideal for industrial and construction tasks, they provide reliable performance and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pan Head Tapping Screw Shape C | AW Drive System | Zinc Plated | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 11122995
Alternatively Known As: Self-tapping screw, Pan head screw, AW drive screw, Zinc plated tapping screw, Shape C tapping screw

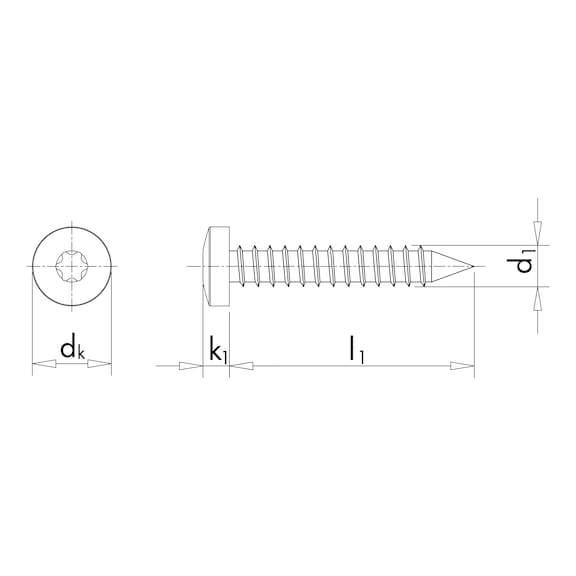

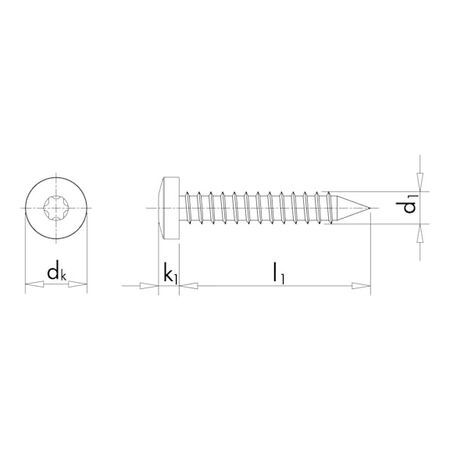

Technical Specifications
- Material: Steel
- Surface: Zinc plated, blue passivated (A2K)
- Form: C
- Nominal diameter: 2.9 mm
- Length: 9.5 mm
- Head diameter: 5.6 mm
- Head height: 2.6 mm

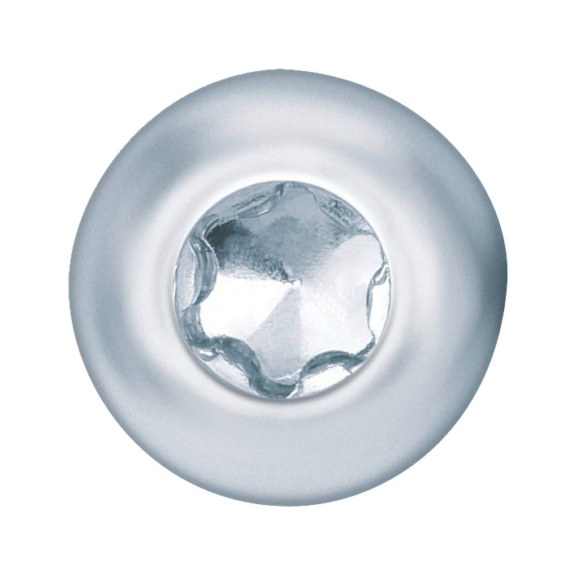

- Internal drive: AW10
- Head type: Pan head
- Thread type: Self-tapping screw thread
- Thread design: Full thread
- Shape of tip: Tip
- Standards: ISO 1478, WN 111 compliant
- Dimensions (H x L x W): 2.6mm x 9.5mm x 5.6mm
- Weight: 0.01 kg
Key Features
- Enhanced torque transmission with AW drive system
- Longer service life due to fatigue-free screwing
- Optimum centring for better mounting output
- Largest possible contact surface of bit in screw drive
- Even force distribution prevents damage to surface-protection coating
- Better resistance to corrosion with zinc-plated, blue passivated steel
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper torque and secure fastening.
Applications
- General fastening applications requiring self-tapping screws
- Suitable for metal, plastic, and wood materials
- Industrial and construction fastening tasks
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life, reducing waste
- Durable design minimizes need for frequent replacements
Warranty Information
Wurth provides warranty against manufacturing defects as per company policy.
Available Now
Wurth Pan Head Tapping Screw Shape C with AW Drive 100 PCS is available for immediate purchase, ideal for industrial, construction, and general fastening applications.
