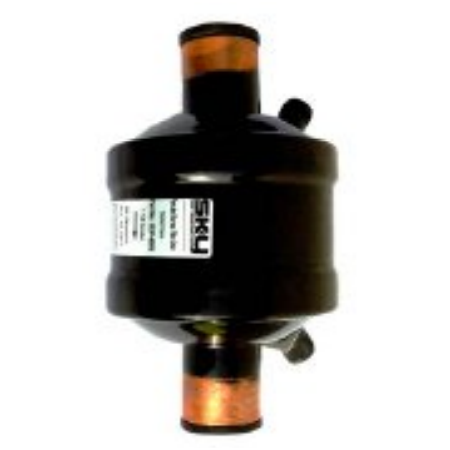

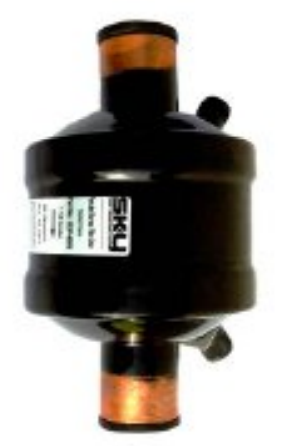

Pancake Pressure Vessel | Dual Access Connection | 24 kW Capacity | Anti-Corrosion Finish | by Aspen Pumps
The Pancake Pressure Vessel is designed for refrigeration systems, featuring a dual access connection for monitoring pressure differential and a capacity of 24 kW for R-22/410A refrigerants. Built for commercial and industrial HVAC applications, it includes a membrane filter element for effective particle removal, ensuring optimal system performance and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pancake Pressure Vessel | Dual Access Connection | 24 kW Capacity | Anti-Corrosion Finish | by Aspen Pumps
Brand: Aspen Pumps
SKU: 303P-407S
Alternatively Known As: SKY Pressure Vessel Pancake, Refrigeration Pressure Vessel, Aspen Pancake Filter Drier
Technical Specifications
- Connection: 7/8 ID - Dual Access
- Lay-in length: 108 mm
- Diameter: 88 mm
- Capacity kW R-22/410A: 24
- Capacity kW R-404A: 20
- Capacity kW R-134A: 17
- Manufactured in accordance with ISO/AS 5149.2
- Safe Working Pressure (SWP): 3,200 kPa
- Solid core block composition: 60% MS, 35% AL, 5% AC
- Membrane filter element for particle removal
- Anti-corrosion powder coat finish with chrome flare or solid copper connections
- Dimensions (H x L x W): 108mm x 108mm x 88mm
- Weight: 1.5 kg
Key Features
- Connection: 7/8 ID - Dual Access ports for monitoring pressure differential and contaminant take-up
- Lay-in length: 108 mm, Diameter: 88 mm
- Capacity: 24 kW for R-22/410A, 20 kW for R-404A, 17 kW for R-134A
- Manufactured in accordance with ISO/AS 5149.2 with a Safe Working Pressure (SWP) of 3,200 kPa
- Solid core block composed of 60% MS, 35% AL, and 5% AC for superior acid, wax, and moisture absorption and retention
- Membrane filter element removes and retains all harmful particles
- Anti-corrosion powder coat finish with chrome flare or solid copper connections for ease of installation and increased service life
Professional Installation Requirements
- Installation should be performed by a qualified refrigeration technician to ensure compliance with safety standards and optimal system performance.
Applications
- Refrigeration systems requiring pressure vessels for refrigerants R-22, R-410A, R-404A, and R-134A
- Commercial and industrial HVAC and refrigeration installations
- Systems requiring acid, wax, and moisture filtration and retention
Standards & Compliance
- Complies with AS/NZS 5149.2 – Refrigerating systems and heat pumps – Safety and environmental requirements
Environmental Benefits
- Enhances system efficiency by removing harmful particles, reducing refrigerant leaks and environmental impact
- Durable anti-corrosion finish extends product life, reducing waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen Pumps SKY Pressure Vessel Pancake model 303P-407S is available for immediate purchase, ideal for commercial and industrial refrigeration applications.
