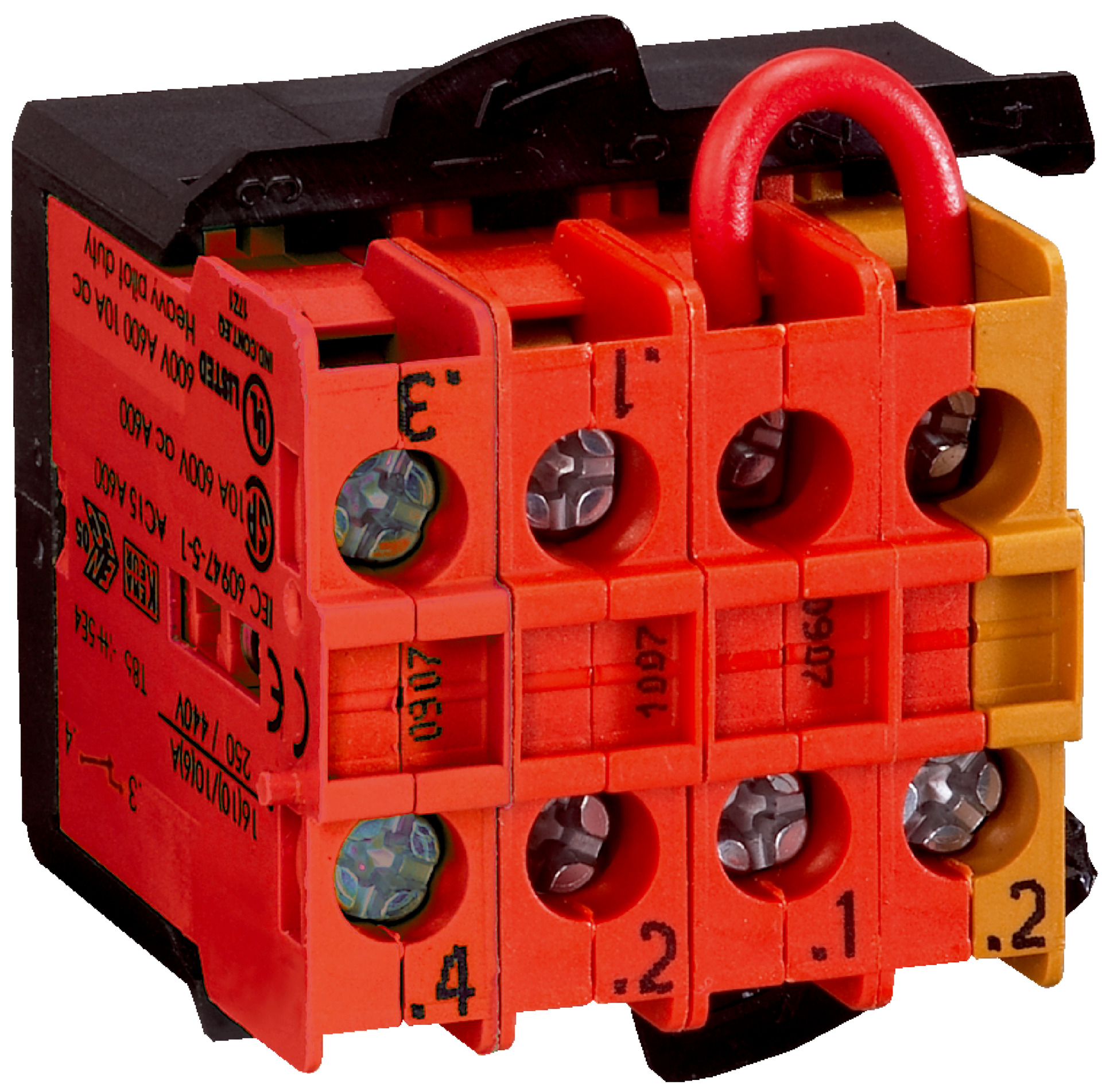

Panel Mount Contact Module | 3 Positive Action N/C Contacts | Screw Connection | by SICK
The Panel Mount Contact Module features 3 positive action normally closed (N/C) contacts, making it ideal for industrial automation safety systems. Designed for panel mounting, it ensures reliable switching in machinery that requires safety-related functions. With a rated operating current of 3 A (250 V AC) and a robust design for up to 1 million switching cycles, this module is perfect for professionals seeking dependable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Positive action N/C contacts: 3
- N/O contacts: 0
- Connection type: Screw connection
- Conductor cross section: ≤ 2.5 mm²
- Usage category: AC-15/DC-13 (EN 60947-5-1)
- Rated operating current: 3 A (250 V AC), 2 A (24 V DC)
- Rated insulation voltage Ui: 600 V
- Switching voltage: ≥ 5 V DC
- Switching current: ≥ 1 mA
- Electrical life: 1 x 10^6 switching cycles
- Mechanical life: 1 x 10^6 switching cycles
- Protection class: II (EN 50178)
- Operating temperature: -30 °C to +85 °C
- Storage temperature: -50 °C to +85 °C
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.1 kg
Key Features
- 3 positive action normally closed (N/C) contacts
- Panel mount version with screw connection
- Slow action switching element
- Rated operating current: 3 A (250 V AC), 2 A (24 V DC)
- Rated insulation voltage: 600 V
- Mechanical and electrical life of 1 million switching cycles
- Protection class II (EN 50178)
- Operating temperature range from -30°C to +85°C
Professional Installation Requirements
- Installation should be performed by a qualified professional familiar with electrical safety standards and panel mount devices.
Applications
- Industrial automation safety systems
- Panel mounting for safety-related switching
- Use in machinery requiring positive action N/C contacts
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK ES21-CH3001 Panel Mount Contact Module is available for immediate purchase, ideal for industrial safety and automation applications.
