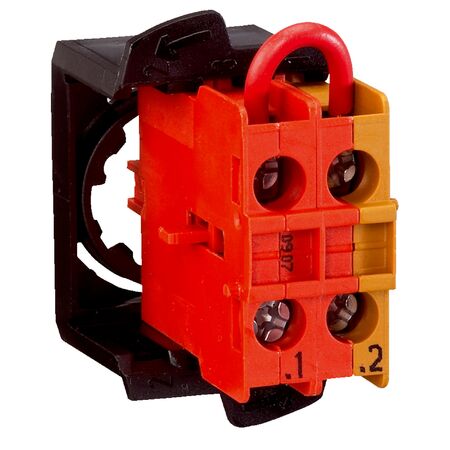

Panel Mount Contact Module | Positive Action N/C Contacts | Rated Operating Current 3A | Protection Class II | by SICK
The Panel Mount Contact Module ES21-CG1001 features a positive action N/C contact and is designed for industrial automation safety systems. With a rated operating current of 3A at 250V AC and a robust protection class II, this module ensures reliable performance in control cabinets and safety-related switching applications. Built to last with a mechanical and electrical life of 1 million switching cycles, it operates efficiently in temperatures ranging from -30°C to +85°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Positive action N/C contacts: 1
- N/O contacts: 0
- Connection type: Screw connection
- Conductor cross section: ≤ 2.5 mm²
- Usage category: AC-15/DC-13 (EN 60947-5-1)
- Rated operating current: 3 A (250 V AC), 2 A (24 V DC)
- Rated insulation voltage Ui: 600 V
- Switching voltage: ≥ 5 V DC
- Switching current: ≥ 1 mA
- Electrical life: 1 x 10^6 switching cycles
- Mechanical life: 1 x 10^6 switching cycles
- Protection class: II (EN 50178)
- Ambient operating temperature: -30 °C to +85 °C
- Storage temperature: -50 °C to +85 °C
- Dimensions (H x L x W): 30mm x 50mm x 50mm
- Weight: 0.1 kg
Key Features
- Positive action N/C contacts: 1
- Panel mount version contact module
- Slow action switching element
- Rated operating current: 3 A (250 V AC), 2 A (24 V DC)
- Rated insulation voltage: 600 V
- Mechanical and electrical life: 1 million switching cycles
- Ambient operating temperature range: -30°C to +85°C
- Protection class II (EN 50178)
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper wiring.
Applications
- Industrial automation safety systems
- Panel mounting in control cabinets
- Safety-related switching applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK ES21-CG1001 Panel Mount Contact Module is available for immediate purchase, ideal for industrial safety and automation control panel applications.
