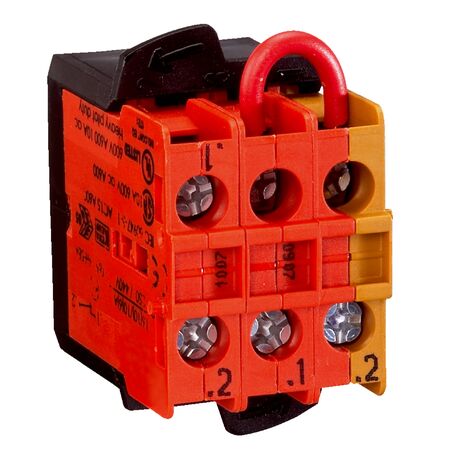

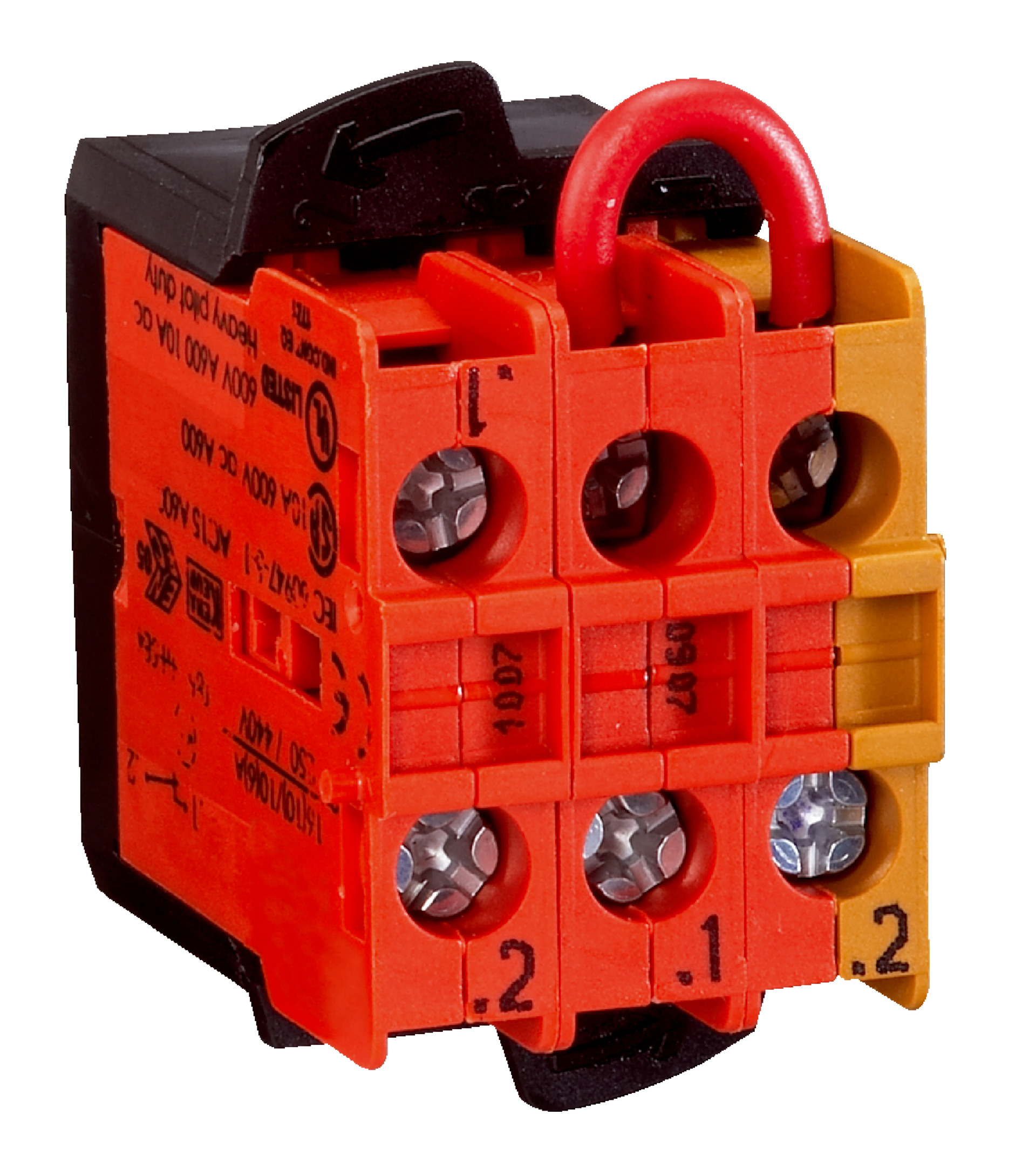

Panel Mount Contact Module ES21-CG2001 | 2 Positive Action N/C Contacts | 600V Insulation Voltage | by SICK
The Panel Mount Contact Module ES21-CG2001 features 2 positive action normally closed (N/C) contacts, making it ideal for industrial automation safety systems. With a rated insulation voltage of 600V and an impressive electrical life of 1 million switching cycles, this module ensures reliable performance in safety-related contact monitoring applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Positive action N/C contacts: 2
- N/O contacts: 0
- Switching principle: Slow action switching element
- Rated operating current: 3 A (250 V AC), 2 A (24 V DC)
- Rated insulation voltage Ui: 600 V
- Switching voltage: ≥ 5 V DC
- Switching current: ≥ 1 mA
- Electrical life: 1,000,000 switching cycles
- Mechanical life: 1,000,000 switching cycles
- Connection type: Screw connection
- Conductor cross section: ≤ 2.5 mm²
- Protection class: II (EN 50178)
- Ambient operating temperature: –30 °C to +85 °C
- Storage temperature: –50 °C to +85 °C
- Dimensions (H x L x W): 30mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- 2 positive action normally closed (N/C) contacts
- Panel mount version contact module
- Slow action switching element
- Rated operating current: 3 A (250 V AC), 2 A (24 V DC)
- Rated insulation voltage: 600 V
- Electrical and mechanical life: 1 million switching cycles
- Protection class II (EN 50178)
- Connection via screw terminals for conductor cross section ≤ 2.5 mm²
Professional Installation Requirements
- Installation should be performed by a qualified professional familiar with electrical safety standards and panel mount devices.
Applications
- Industrial automation safety systems
- Panel mounting for safety-related contact monitoring
- Use in machinery requiring positive action N/C contacts
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Complies with China-RoHS for restricted hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ES21-CG2001 Panel Mount Contact Module is available for immediate purchase, ideal for industrial safety and automation applications.
