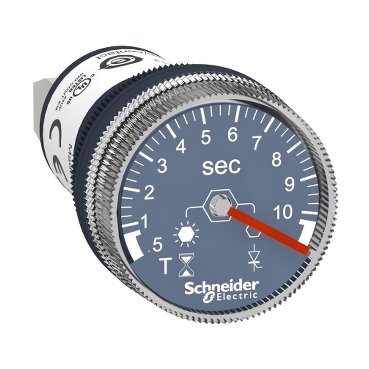

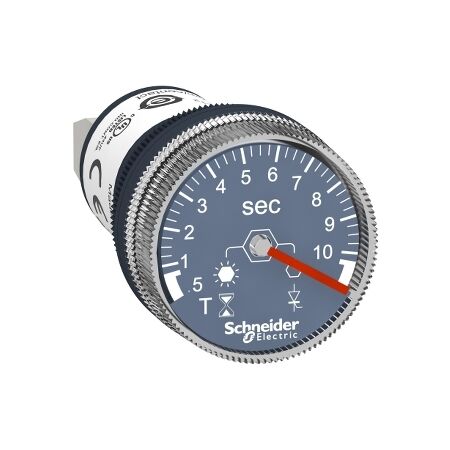

Panel Mounted Timer Mono Function 230V AC/DC | ON-Delay | LED Status Indication | by Clipsal
The Panel Mounted Timer Mono Function 230V AC/DC is designed for precise control in industrial automation and lighting applications. With an adjustable time range from 0.1s to 30h and LED status indication, this reliable timer is perfect for control cabinets and HVAC systems. Built for robust performance, it ensures energy-saving automation and compliance with Australian electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Panel Mounted Timer Mono Function 230V AC/DC | ON-Delay | LED Status Indication | by Clipsal
Brand: Clipsal
SKU: SCHXB5DTGM2
Alternatively Known As: Clipsal timer relay, panel mount timer, mono function timer, SCHXB5DTGM2 timer, industrial timer relay
Technical Specifications
- Supply voltage: 230V AC/DC
- Function: Mono-function (ON-delay)
- Mounting: Panel mounted
- Contact configuration: 1 C/O (SPDT)
- Time range: 0.1s to 30h (adjustable)
- Status indication: LED
- Operating temperature: -20°C to +50°C
- Electrical life: 100,000 cycles
- Dimensions (H x L x W): 30mm x 50mm x 22mm
- Weight: 0.15 kg
Key Features
- Mono-function timer for precise control
- Panel mounted design for easy integration
- Wide voltage range: 230V AC/DC
- LED status indication
- Reliable and robust construction
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with Australian electrical standards.
Applications
- Industrial automation panels
- Control cabinets
- Lighting control
- HVAC systems
- Machinery timing operations
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables energy-saving automation by controlling equipment run times
- Reduces unnecessary power consumption in industrial and commercial settings
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Panel Mounted Timer Mono Function 230V AC/DC SCHXB5DTGM2 is available for immediate purchase. Ideal for industrial automation, control panels, and commercial timing applications.
