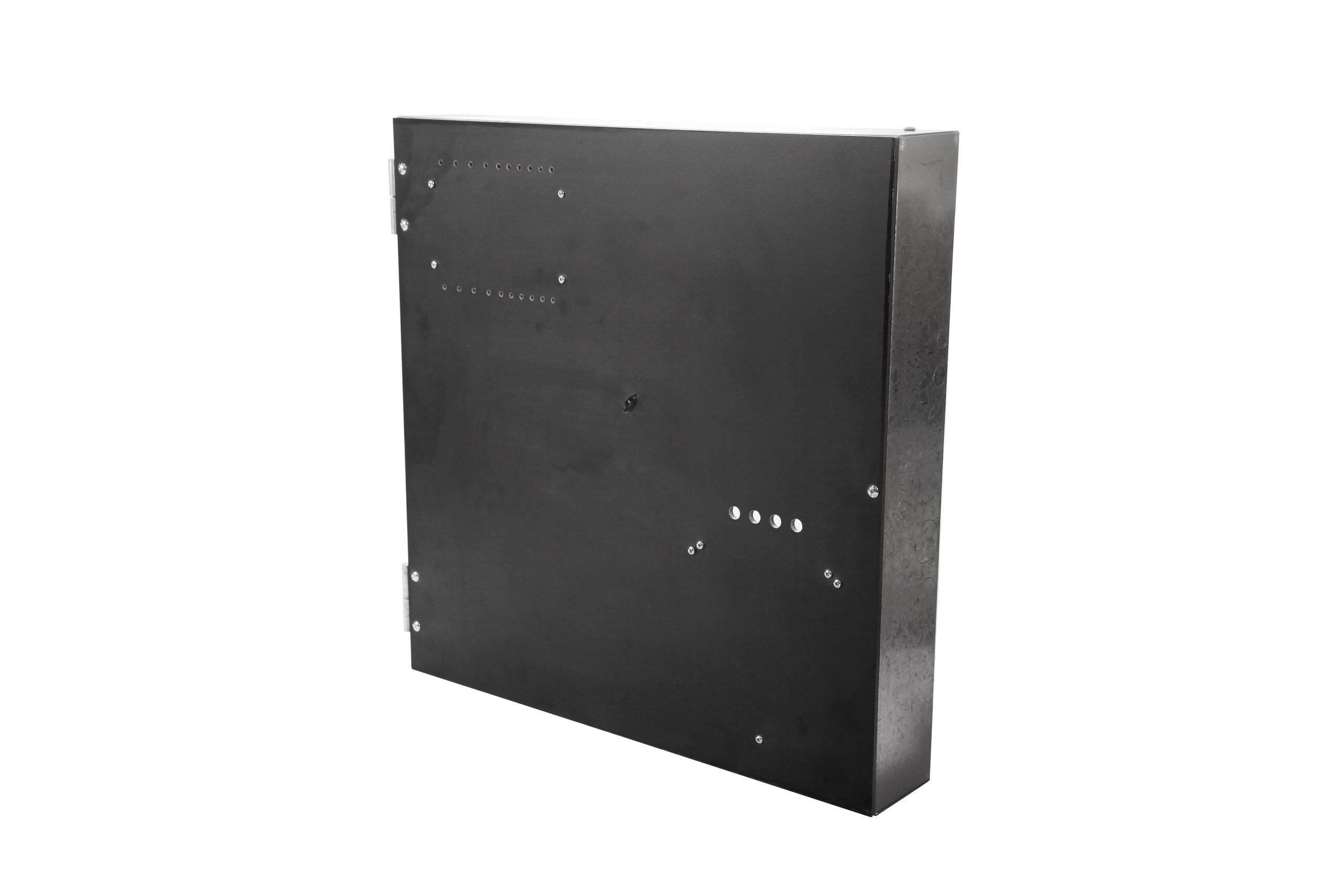

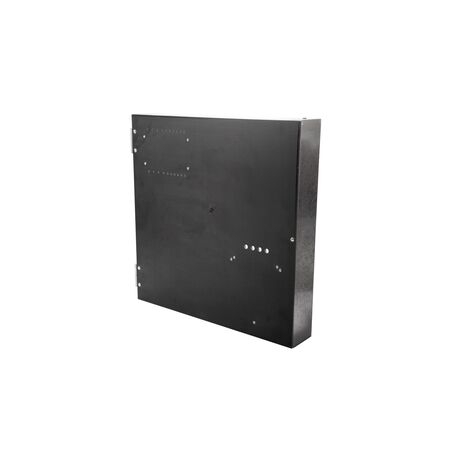

Panel Surround 600x600x100mm Wired Test Block Galvanised Bovara
Bovara meter panel and surround features 600H x 600W x 100D 0.9mm galvanised body, bakelite panel, fitted CT test block pre-wired with 5m 10 core cable, IP20.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Bovara Meter Panel Surround, CT Metering Panel, Wired Current Transformer Test Block Panel, Electrical Meter Panel Enclosure
Technical Specifications
- Body Material: 0.9 mm galvanised steel
- Panel Material: Bakelite
- Test Block: Factory-fitted current transformer test block
- Cable: 5 m pre-wired 10-core cable
- Ingress Protection: IP20
- Mounting: Wall mounted
- Cable Entry: Knockouts on all four sides, approximately 24–75 mm diameter
- Earthing: Internal M6 earth stud
- Meter Compatibility: Suitable for single-phase or three-phase metering applications
- Panel Configuration: Pre-drilled switch panel for meter and CT test block installation
- Dimensions (H x L x W): 600mm x 100mm x 600mm
- Weight: 9.5 kg
Key Features
- 600 x 600 mm meter panel format with 100 mm overall depth
- Galvanised steel surround for durable indoor electrical installations
- Insulating bakelite meter panel
- Factory-fitted and pre-wired CT test block
- Supplied with 5 m of 10-core cable
- IP20 enclosure construction
- Cable-entry knockouts provided on all four sides
- Internal M6 earth stud included
- Suitable for CT metering and associated meter installation work
Professional Installation Requirements
- Installation, metering connections and CT secondary wiring must be completed by a licensed electrician or suitably qualified electrical contractor in accordance with AS/NZS 3000, applicable electricity distributor service and installation rules, and site-specific metering requirements. CT circuits must be safely isolated before work is undertaken.
Applications
- Commercial and industrial CT metering installations
- Single-phase and three-phase electricity meter panels
- Current transformer meter connection and testing arrangements
- Wall-mounted electrical metering assemblies
- Electrical switchboard and metering upgrade projects
Standards & Compliance
- AS/NZS 61439.2:2016 applicable to the completed low-voltage switchgear and controlgear assembly
- AS/NZS 3000 applicable to electrical installation and wiring work
- Applicable electricity distributor service and installation rules for CT metering installations
Environmental Benefits
- Galvanised steel construction is durable and recyclable at end of service life
- Robust enclosure materials can extend service life and reduce replacement waste
- Long-term use in fixed electrical installations can reduce the need for replacement enclosures
Warranty Information
No specific Bovara warranty period was located. Warranty claims are subject to supplier terms and applicable Australian Consumer Law.
Available Now
Available through authorised Bovara distributors in Australia.
