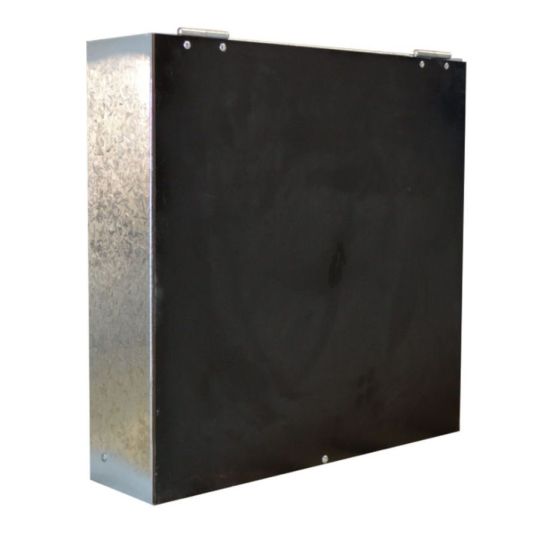

Panel Surround 600x900x100mm Blank Switch Panel Galvanised Bovara
Bovara meter panel and surround features 600H x 900W x 100D 0.9mm galvanised open-back body, blank switch panel, IP20, knockouts all sides and M6 earth stud.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Galvanised Meter Panel Surround, Blank Meter Panel, Electrical Switchboard Panel Surround
Technical Specifications
- Part Number: PS6090
- Product Type: Blank switch panel and surround
- Material: 0.9 mm galvanised steel body with bakelite switch panel
- Ingress Protection: IP20
- Construction: Open-back metal enclosure
- Mounting: Wall mounted
- Cable Entry: Knockouts on all sides, 24–75 mm diameter
- Panel Type: Blank, not pre-drilled
- Meter Compatibility: Suitable for single-phase and three-phase meters and test block
- Earthing: Internal M6 earth stud included
- Locking Provision: Padlock hole up to 12 mm
- Finish: Raw galvanised
- Switch Panel Testing: Water absorption, insulation resistance and 960°C glow wire testing by TÜV
- Test Block: CT.TB sold separately
- Dimensions (H x L x W): 600mm x 900mm x 100mm
- Weight: 8 kg
Key Features
- 600 mm high by 900 mm wide panel format
- Durable 0.9 mm galvanised steel construction
- Blank switch panel for custom electrical fit-out
- Open-back design for quick wall mounting and cable access
- Cable-entry knockouts on all four sides
- Internal M6 earth stud for bonding
- Suitable for single-phase and three-phase meter applications
- IP20 enclosure rating
Professional Installation Requirements
- Installation, meter fit-out and electrical connection should be performed by a licensed electrician or qualified switchboard assembler in accordance with applicable state requirements, NSW Service Installation Rules and AS/NZS 61439.
Applications
- Residential electricity meter installations
- Commercial electricity meter installations
- Single-phase and three-phase metering installations
- Low-voltage switchboard and distribution panel assemblies
- Custom electrical panel construction
- Wall-mounted electrical equipment enclosures
Standards & Compliance
- AS/NZS 61439.1 for low-voltage switchgear and controlgear assemblies, general requirements
- AS/NZS 61439.2 for power switchgear and controlgear assemblies
- NSW Service Installation Rules
Environmental Benefits
- Galvanised steel components are recyclable at the end of service life
- Galvanised corrosion protection can extend service life and reduce replacement waste
- Durable metal construction supports refurbishment and reuse of the panel assembly
Warranty Information
Bovara provides a 12-month warranty for business customers against defects in workmanship, materials or design from the date of despatch, subject to its standard terms and conditions. Australian Consumer Law guarantees apply where relevant.
Available Now
Available through authorised Bovara distributors in Australia.
