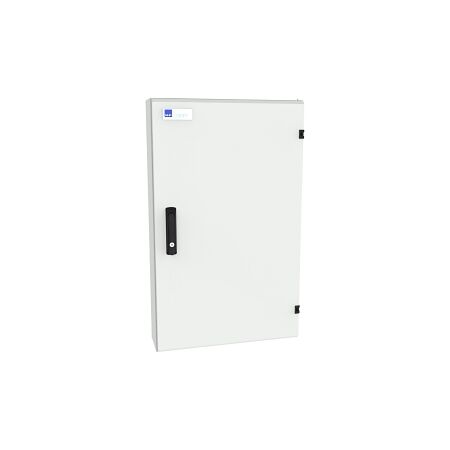

Panelboard 36 Way 864mm IP40 Surface Mount Light Grey NHP
NHP Panelboard 36 Way 864mm IP40 Surface features 250 A rating, Steel. Ideal for industrial electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated Current: 250 A
- Number of Outgoing Ways: 36
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Neutral Terminal Block: Yes
- Earthing Terminal Block: Yes
- Spare DIN Equipment Space Poles: 16
- Material Housing: Steel
- Material Thickness: 1 mm
- Degree of Protection: IP40
- Impact Strength: IK07
- Type of Cover: Door
- With Lock: Yes
- Mounting Method: Surface mounted (plaster)
- Dimensions (H x L x W): 864mm x 153mm x 530mm
- Weight: 15 kg
Key Features
- 36 outgoing ways for versatile circuit management.
- IP40 rated for protection against solid objects larger than 1mm.
- Surface mounted design for easy installation.
- Steel housing for durability and strength.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and light industrial applications
Standards & Compliance
- Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
- Durable steel construction reduces the need for frequent replacements.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept One Panelboard 864mm IP40 DIN 36 Way No Main Switch Light Grey is available now for immediate purchase. Ideal for residential and commercial electrical distribution needs.
