Panelboard 96 Way 250A | IP42 Rated | Extra Row | Orange by NHP
Panelboard with 96 outgoing ways and 250A rated current—ideal for commercial and residential electrical distribution. Built for extensive circuit management, with IP42 protection and extra row for added capacity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

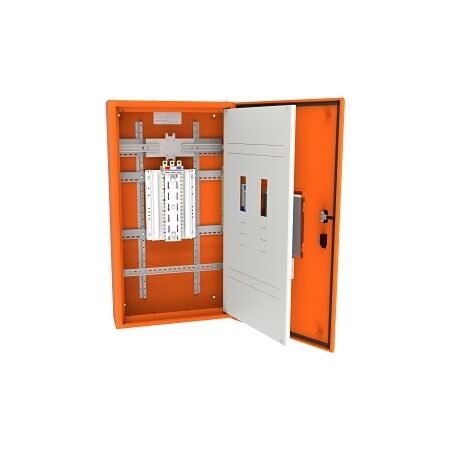

Product Name/Title: NHP Concept Plus Panelboard 1728mm IP42 DIN-T 96 Way 250A with Extra Row No Main Switch Orange
Brand: NHP
SKU: CPLX96O
Alternatively Known As: NHP Distribution Board, NHP Panelboard, NHP Electrical Panel
Technical Specifications
- Rated Current: 250 A
- Number of Outgoing Ways: 96
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Neutral Terminal Block: Yes
- Neutral Bar Rated Current: 250 A
- Earthing Terminal Block: Yes
- Spare DIN Equipment Space Poles: 42
- DIN Rail: Yes
- Material Housing: Steel
- Material Thickness: 1.6 mm
- Degree of Protection: IP42
- Type of Cover: Door
- Material Thickness Cover: 1.6 mm
- With Lock: Yes
- Mounting Method: Surface mounted (plaster)
- Impact Strength: IK10
- Dimensions (H x L x W): 1728mm x 200mm x 600mm
- Weight: 50 kg
Key Features
- 96 outgoing ways for extensive circuit management.
- 250A rated current for high capacity.
- IP42 rated for protection against solid objects greater than 1mm.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for safety and compliance.
Applications
- Commercial: Industrial facilities, large buildings, and infrastructure projects
- Residential: Large homes requiring extensive electrical distribution
Standards & Compliance
- Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
- Durable steel construction reduces waste and extends product life.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Plus Panelboard 1728mm IP42 DIN-T 96 Way 250A is available now for immediate purchase. Ideal for commercial and residential electrical distribution needs.
