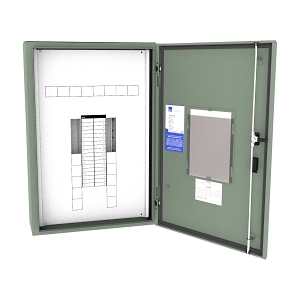

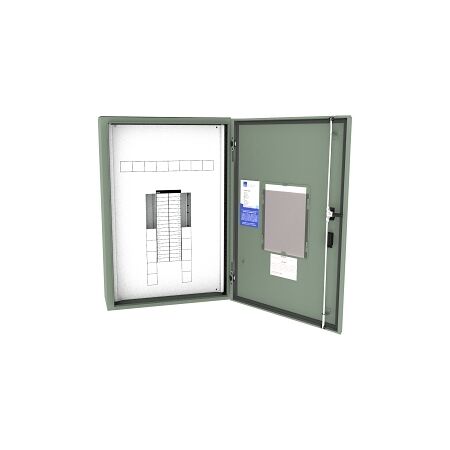

Panelboard 96 Way | 250A Main Switch | IP66 Rated | Surface Mount by NHP
Panelboard with 96 outgoing ways and 250A main switch—ideal for industrial and commercial facilities. Built for robust electrical distribution, with IP66 protection and surface-mounted design for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP Concept Premier Panelboard 1512mm IP66 DIN-T 96 Way 250A 250A Main Switch Grey
Brand: NHP
SKU: CPR96M250G
Alternatively Known As: NHP Panelboard, Electrical Distribution Board, 96 Way Panelboard
Technical Specifications
- Rated Current: 250 A
- Number of Outgoing Ways: 96
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Number of Poles (Main Switch): 3
- Material Housing: Steel
- Material Thickness: 1.6 mm
- Degree of Protection: IP66
- Impact Strength: IK10
- Dimensions (H x L x W): 1512mm x 240mm x 600mm
- Weight: 50 kg
Key Features
- IP66 rated for protection against dust and water ingress.
- 96 outgoing ways for extensive circuit management.
- 250A main switch for high current applications.
- Surface mounted design for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for safety and compliance.
Applications
- Commercial: Industrial facilities, large buildings, and infrastructure projects
- General: Any location requiring a robust electrical distribution solution
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Premier Panelboard 1512mm IP66 DIN-T 96 Way 250A is available now for immediate purchase, ideal for commercial and industrial applications.
Non-Returnable & Non-Cancellable
