Trade Discount 25%

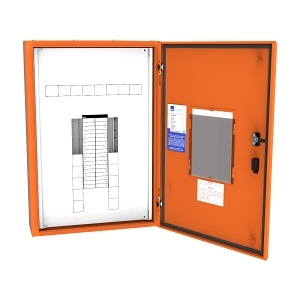

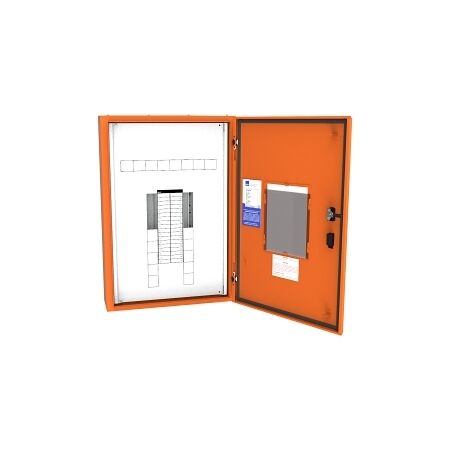

Panelboard Isolation Chassis 72 Way | 1296mm IP42 | Surface Mounted by NHP
Panelboard isolation chassis with 72 outgoing ways and IP42 protection—ideal for commercial and industrial electrical distribution. Built for extensive distribution, with surface mounted design for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP Concept Plus Panelboard Isolation Chassis 1296mm IP42 DIN-T 72 Way GB Chassis No MSW Orange
Brand: NHP
SKU: CPLG72O
Alternatively Known As: NHP Panelboard, Isolation Chassis, Electrical Distribution Board
Technical Specifications
- Rated Current: 250 A
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Material Housing: Steel
- Material Thickness: 1.6 mm
- Degree of Protection: IP42
- Impact Strength: IK10
- Neutral Terminal Block: Yes
- Earthing Terminal Block: Yes
- Spare DIN Equipment Space Poles: 18
- Dimensions (H x L x W): 1296mm x 200mm x 600mm
- Weight: 25 kg
Key Features
- 72 outgoing ways for extensive electrical distribution.
- IP42 rated for protection against solid objects and limited water ingress.
- Surface mounted design for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Commercial: Industrial facilities, commercial buildings
- General: Electrical distribution and isolation in various settings
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Durable steel construction reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Plus Panelboard Isolation Chassis 1296mm IP42 DIN-T 72 Way is available now for immediate purchase. Ideal for commercial and industrial electrical distribution.
Non-Returnable & Non-Cancellable
