Home/Electrical/Connection/Metering/Panelboard Metering 1728mm | Dual Energy Meter | 48 Way 250A | Orange by NHP

Trade Discount 25%

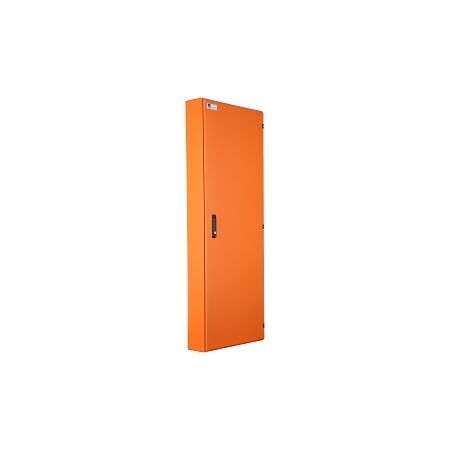

NHP Concept Plus Panelboard Metering 1728mm Dual Energy Meter Split DIN-T 48 48 Way 250A MSW Orange

Panelboard Metering 1728mm | Dual Energy Meter | 48 Way 250A | Orange by NHP

BRAND: NHP

SKU: CPLMD4848M250O

$9,053.90 List price: $12,022.40

Free pick up (over 25 kg)

For delivery quote message

30 Days Return Delivery Options

Panelboard metering with dual energy monitoring and 48-way 250A capacity—ideal for commercial and residential applications. Built for advanced metering solutions, with robust steel housing and IP42 protection.

Description
Attachments

Product Name/Title: NHP Concept Plus Panelboard Metering 1728mm Dual Energy Meter Split DIN-T 48 48 Way 250A MSW Orange

Brand: NHP

SKU: CPLMD4848M250O

Alternatively Known As: Dual Energy Meter, Panelboard Metering, Concept Plus Metering

Technical Specifications

Rated Current: 250 A
Number of Outgoing Ways: 96
Max Rated Operation Voltage: 415 V
Rated Impulse Withstand Voltage: 6 kV
Rated Insulation Voltage: 500 V
Number of Poles Main Switch: 3
Neutral Terminal Block: Yes
Earthing Terminal Block: Yes
Spare DIN Equipment Space Poles: 14
Impact Strength: IK10
Mounting Method: Surface mounted (plaster)
Dimensions (H x L x W): 1728mm x 200mm x 600mm
Weight: 50 kg

Key Features

Integrated energy metering function for dual energy monitoring.
Robust steel housing with a thickness of 1.6 mm.
IP42 rated for protection against solid objects and water.

Professional Installation Requirements

Professional installation by a qualified electrician is required for optimal safety and compliance.

Applications

Commercial: Large buildings, industrial facilities
Residential: High-demand homes requiring advanced metering solutions

Standards & Compliance

Complies with relevant Australian standards for electrical safety.

Environmental Benefits

Energy-efficient design supports sustainable energy management.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP Concept Plus Panelboard Metering is available now for immediate purchase. Ideal for commercial and residential applications requiring advanced metering solutions.

Non-Returnable & Non-Cancellable

CPLMD4848M250O-AU-Concept-Plus-Panelboard-Dual-Metering-Datasheet.pdf (CPLMD4848M250O-AU-Concept-Plus-Panelboard-Dual-Metering-Datasheet.pdf, 1,076 Kb) [Download]
