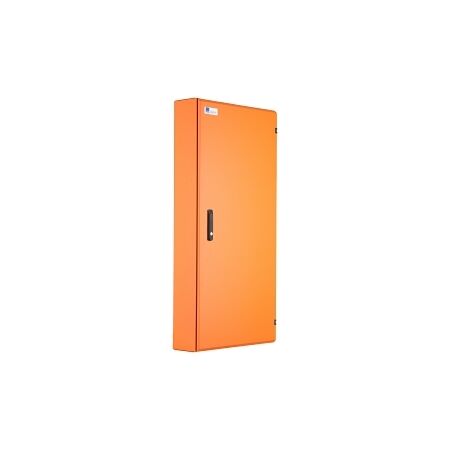

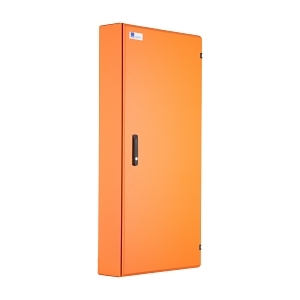

NHP Concept Plus Panelboard Metering 1296mm IP42 Single Meter DIN-T 72 Way 250A Main Switch Orange

Panelboard Metering 72 Way | 250A Main Switch | IP42 Rated | Orange by NHP

BRAND: NHP

SKU: CPLMS72M250O

$8,180.30 List price: $10,862.40

Free pick up (over 25 kg)

For delivery quote message

30 Days Return Delivery Options

Panelboard metering with 72 outgoing ways and 250A main switch—ideal for industrial facilities and large buildings. Built for robust electrical distribution, with integrated energy metering and durable steel housing.

Description
Attachments

Product Name/Title: NHP Concept Plus Panelboard Metering 1296mm IP42 Single Meter DIN-T 72 Way 250A Main Switch Orange

Brand: NHP

SKU: CPLMS72M250O

Alternatively Known As: NHP Panelboard, Concept Plus Distribution Board, Electrical Metering Panel

Technical Specifications

Rated Current: 250 A
Number of Outgoing Ways: 72
Max Rated Operation Voltage: 415 V
Rated Impulse Withstand Voltage: 6 kV
Rated Insulation Voltage: 500 V
Number of Poles (Main Switch): 3
Neutral Terminal Block: Yes
Earthing Terminal Block: Yes
Material Housing: Steel
Material Thickness: 1.6 mm
Degree of Protection: IP42
Impact Strength: IK10
Spare DIN Equipment Space Poles: 14
Dimensions (H x L x W): 1296mm x 200mm x 600mm
Weight: 50 kg

Key Features

Integrated energy metering function for efficient monitoring.
Surface mounted design with a durable steel housing.

Professional Installation Requirements

Professional installation by a qualified electrician is required for optimal safety and compliance.

Applications

Commercial: Industrial facilities, large buildings, and infrastructure projects
General: Any location requiring robust electrical distribution and metering solutions

Standards & Compliance

Complies with AS/NZS 3000 for electrical installation safety standards.

Environmental Benefits

Efficient energy metering helps in reducing energy waste and optimizing consumption.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP Concept Plus Panelboard Metering is available now for immediate purchase, ideal for commercial and industrial applications.

CPLMS72M250O-AU-Concept-Plus-Panelboard-Single-Metering-Datasheet.pdf (CPLMS72M250O-AU-Concept-Plus-Panelboard-Single-Metering-Datasheet.pdf, 1,101 Kb) [Download]
