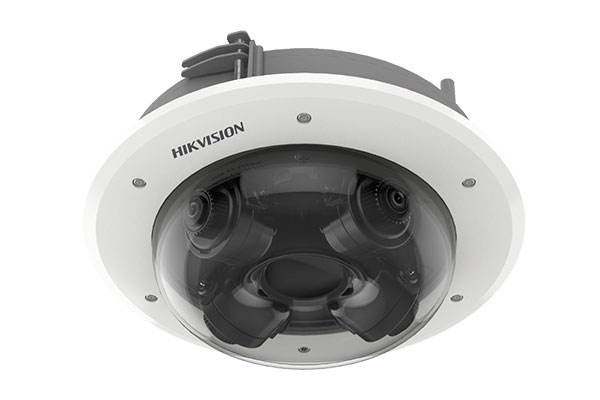

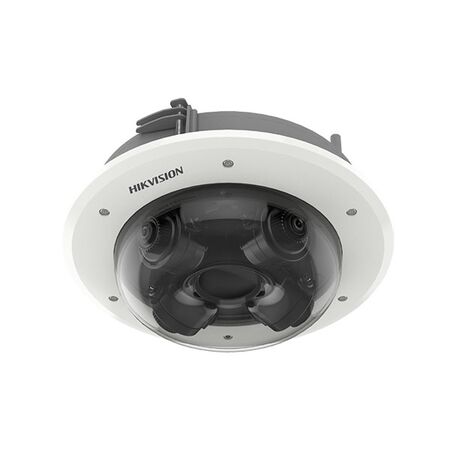

PanoVu Camera 5MP 4 Multi Lens Hikvision
Hikvision PanoVu multi lens camera features 5MP resolution and 4 lenses. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision PanoVu Multi-Lens Camera, Hikvision 4-Lens Panoramic CCTV Camera, DS-2CD6D54G1-IZS
Technical Specifications
- Image Resolution: 20MP total, comprising 4 x 5MP sensors
- Sensor Resolution: 2560 x 1920 per lens at up to 25 fps
- Lens: Four motorised varifocal 2.8–8 mm lenses
- Field of View: Up to 360° coverage across four adjustable lenses
- Wide Dynamic Range: 120 dB True WDR
- Video Compression: H.265+, H.265, H.264+ and H.264
- Night Vision: Integrated infrared illumination up to 30 m
- Network Interface: 10/100/1000 Mbps RJ-45 Ethernet
- Power Supply: 12 VDC, 24 VAC or PoE 802.3at Class 4
- Power Consumption: Up to 22 W via DC or AC; approximately 19 W via PoE
- On-Board Storage: microSD, microSDHC or microSDXC up to 128 GB
- Audio: One line input and one line output
- Alarm Interface: Two alarm inputs and two alarm outputs
- Protection Rating: IP67 weather and dust resistance; IK10 impact resistance
- Operating Temperature: -30°C to 60°C
- Analytics: Motion, line crossing, intrusion, region entrance and exit, object removal, unattended baggage, scene change, audio exception and defocus detection
- Protocols and Integration: ONVIF Profile S, Profile G and Profile T; ISAPI and SDK support
- Dimensions (H x L x W): 114.9mm x 250mm x 250mm
- Weight: 2.2 kg
Key Features
- Four independently adjustable 5MP camera modules in one housing
- Provides broad panoramic coverage while reducing blind spots
- Motorised 2.8–8 mm varifocal lenses for flexible scene framing
- 120 dB True WDR for challenging backlit scenes
- Integrated IR illumination for low-light and night surveillance
- IP67-rated housing for outdoor installations
- IK10 vandal-resistant construction
- Supports H.265+ compression to reduce storage and bandwidth requirements
- Local microSD recording up to 128 GB
- Compatible with Hikvision Hik-Connect, HikCentral and iVMS-4200 platforms
Professional Installation Requirements
- Installation should be performed by a suitably qualified CCTV/security installer. Configure the camera, network, PoE supply, recording system and mounting hardware in accordance with the manufacturer's instructions and applicable Australian requirements, including AS/NZS 62676.1.1 where relevant. Additional licensing or electrical requirements may apply depending on the installation and state or territory.
Applications
- Commercial and industrial CCTV systems
- Retail stores and shopping centres
- Warehouses, logistics facilities and loading areas
- Car parks, campuses and transport facilities
- Building entrances, courtyards and perimeter monitoring
- Large indoor areas requiring panoramic multi-directional coverage
Standards & Compliance
- AS/NZS 62676.1.1:2020 for video surveillance system performance requirements and CCTV applications
- AS/NZS CISPR 32:2015 electromagnetic compatibility emissions, as listed in the manufacturer's datasheet
Environmental Benefits
- H.265+ video compression can reduce network bandwidth and recording storage requirements compared with older compression formats
- IP67 and IK10 protection support long service life in demanding installations, reducing premature replacement and product waste
- RoHS-related restricted-substance compliance is identified in the manufacturer's documentation
- PoE operation can simplify system cabling by combining power and data over Ethernet
Warranty Information
Hikvision Oceania lists a five-year manufacturer warranty for qualifying premium project-oriented products manufactured from 1 March 2022, including the Panoramic Series. Confirm product eligibility and local warranty terms with the authorised Australian distributor before purchase.
Available Now
Available through Hikvision and authorised Australian security, CCTV and electrical distributors; confirm current stock and regional model availability before ordering.
