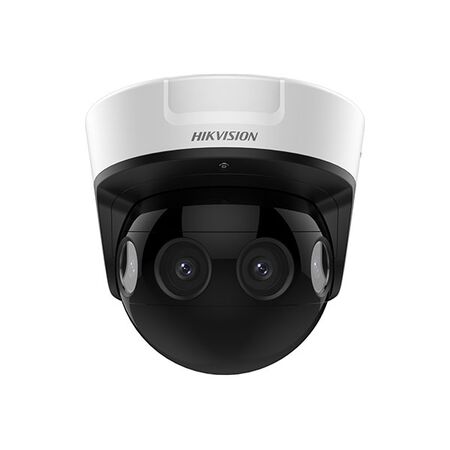

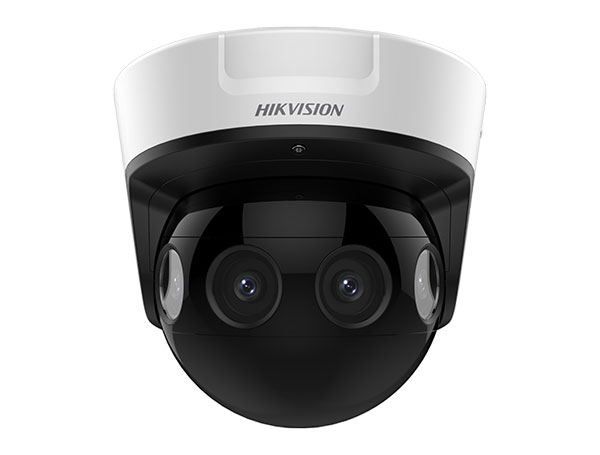

PanoVu Camera 8MP 180 Degree 2.8mm Hikvision
Hikvision PanoVu camera features 8MP resolution, 180 Degree coverage and a 2.8mm lens. Ideal for wide area CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision PanoVu 8MP Camera, 180° Panoramic CCTV Camera, DS-2CD6924G0-IHS 2.8mm
Technical Specifications
- Model: DS-2CD6924G0-IHS
- Resolution: 8MP panoramic image, up to 3840 × 2160 in Panorama mode
- Image Sensor: 1/1.8-inch progressive scan CMOS
- Lens: Four fixed 2.8mm lenses
- Field of View: 180° horizontal and 90° vertical
- Panoramic Modes: Panorama, Panorama + ePTZ, Divided Panorama and Original
- Minimum Illumination: 0.003 lux in colour mode; 0 lux with IR
- Infrared Range: Up to 20 metres
- Video Compression: H.265+, H.265, H.264+, H.264 and MJPEG
- Frame Rate: Up to 25 fps at 50Hz or 30 fps at 60Hz
- Storage: MicroSD, microSDHC or microSDXC up to 256GB; NAS and ANR supported
- Network Interface: 10/100/1000 Mbps Ethernet
- Power: 12V DC, maximum 24W, or PoE IEEE 802.3at
- Audio: One audio input and one audio output
- Alarm: Two alarm inputs and two alarm outputs
- Operating Temperature: -40°C to +60°C
- Housing Material: Aluminium alloy
- Ingress Protection: IP67
- Impact Protection: IK10
- Dimensions (H x L x W): 190mm x 208mm x 207mm
- Weight: 3 kg
Key Features
- Stitched 180° panoramic coverage from four camera sensors
- 8MP resolution for wide-area surveillance
- Four 2.8mm fixed lenses provide a 180° horizontal field of view
- Panorama plus ePTZ mode supports virtual pan, tilt and zoom operation
- Built-in IR illumination up to 20 metres
- H.265+ compression helps reduce bandwidth and storage requirements
- MicroSD recording, NAS storage and automatic network replenishment support
- Built-in heater for operation in very low temperatures
- IP67 weather resistance for outdoor installations
- IK10 vandal-resistant enclosure
- People density counting and selected video analytics
Professional Installation Requirements
- Installation should be performed by a qualified CCTV or security systems technician. PoE or 12V DC power, network cabling, mounting, configuration and system commissioning must be completed in accordance with applicable electrical, data-cabling and video surveillance requirements.
Applications
- Wide-area outdoor CCTV surveillance
- Building entrances and exits
- Car parks and parking structures
- Retail premises and shopping centres
- Transport hubs and public spaces
- Warehouses, industrial sites and commercial facilities
- Perimeter and open-area monitoring
Standards & Compliance
- Manufacturer datasheet lists RCM EMC compliance to AS/NZS CISPR 32:2015
- AS/NZS 62676.1.1:2020 is the relevant Australian/New Zealand standard for general video surveillance system requirements
- AS/NZS 62676.5:2020 is relevant to data specifications and image-quality performance for camera devices
- AS/NZS 3000:2018 applies to fixed electrical installation and wiring work where applicable
Environmental Benefits
- H.265+ compression can reduce network bandwidth and recording-storage requirements compared with less efficient codecs
- RoHS compliance helps restrict specified hazardous substances in the electronic assembly
- Aluminium alloy construction is recyclable at end of product life
- IP67 and IK10 protection can support longer service life and reduce premature replacement waste
- PoE operation can simplify cabling and avoid a separate local power supply at the camera
Warranty Information
Hikvision Oceania lists a five-year manufacturer warranty for qualifying premium project-oriented products manufactured from 1 March 2022, including the Panoramic Series. Confirm eligibility, purchase channel and Australian warranty terms with the authorised distributor.
Available Now
Available through Hikvision and authorised Australian security, CCTV and electrical distributors; model availability may vary by distributor and project requirements.
