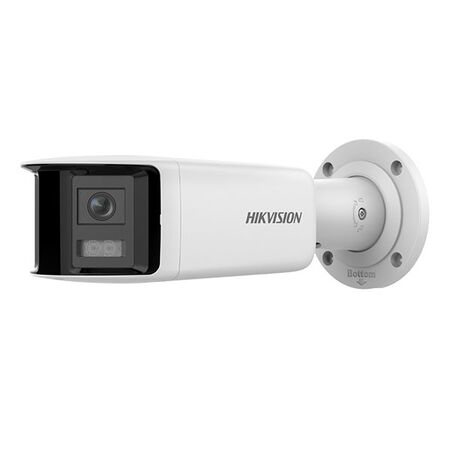

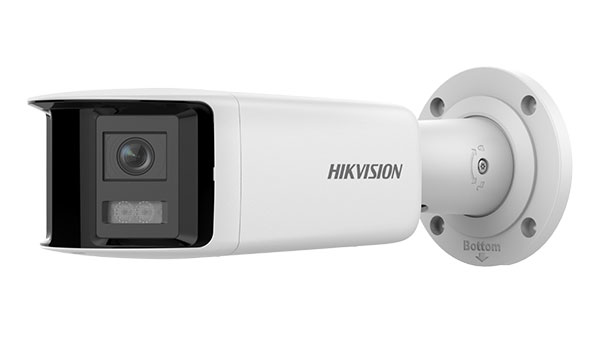

PanoVu ColorVu Bullet Camera 6MP Dual 2.8mm Hikvision
Hikvision PanoVu ColorVu bullet camera features 6MP resolution and a dual 2.8mm configuration. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 6MP Panoramic ColorVu Bullet Camera, Hikvision 180° Dual-Lens CCTV Camera, DS-2CD2T67G2P-LSU/SL
Technical Specifications
- Model: DS-2CD2T67G2P-LSU/SL
- Camera Type: 6MP panoramic fixed bullet network camera
- Image Sensor: 2 × 1/2.5-inch progressive-scan CMOS
- Maximum Resolution: 3632 × 1632
- Lens: Fixed dual lens, 2.8mm, F1.0 aperture
- Field of View: 180° horizontal, 81° vertical
- Minimum Illumination: 0.0005 lux in colour mode; 0 lux with white light
- Video Frame Rate: Up to 20 fps at maximum resolution
- Video Compression: H.265+, H.265, H.264+, H.264
- Dynamic Range: 130dB WDR
- White Light Range: Up to 40m
- Detection: Deep-learning human and vehicle classification
- Audio: Mono audio with built-in microphone and audio alarm
- Deterrence: Active strobe light and audio warning
- Network Interface: Ethernet with PoE support
- Power Supply: 12V DC or IEEE 802.3af PoE
- Maximum Power Consumption: 12.5W via PoE
- Ingress Protection: IP67
- Housing Material: Metal front cover, body and mounting bracket
- Dimensions (H x L x W): 118.6mm x 306.5mm x 105.1mm
- Weight: 1.4 kg
Key Features
- 6MP panoramic imaging in a single stitched view
- Dual 2.8mm lenses provide 180° horizontal coverage
- Hikvision ColorVu technology for 24/7 full-colour imaging
- F1.0 large-aperture lenses for improved low-light performance
- Deep-learning classification of people and vehicles
- Active strobe light and audio alarm for intrusion deterrence
- 130dB wide dynamic range for high-contrast scenes
- White-light supplement illumination up to 40m
- Supports both 12V DC and PoE installation
- IP67-rated housing for outdoor CCTV applications
Professional Installation Requirements
- Installation should be completed by a suitably competent CCTV or security systems installer. Where the camera is connected to mains-powered network equipment or a 230V power supply, electrical work must be completed by a licensed electrician in accordance with applicable Australian wiring requirements.
Applications
- Driveways and vehicle entrances
- Perimeter fences and boundary monitoring
- Commercial building exteriors
- Warehouse and loading areas
- Shopfronts and retail premises
- Wide corridors, side paths and access lanes
- Residential and commercial CCTV systems
Standards & Compliance
- RCM compliance stated to AS/NZS CISPR 32:2015 for electromagnetic compatibility
Environmental Benefits
- PoE operation can reduce additional cabling and power infrastructure in compatible installations
- Low maximum power consumption of approximately 12.5W helps limit operating energy use
- RoHS and WEEE environmental compliance are stated in the manufacturer datasheet
- Durable IP67 metal construction can extend service life and reduce replacement waste
Warranty Information
Warranty is handled through authorised Hikvision Australian distribution partners. The applicable distributor warranty should be confirmed at purchase; an Australian listing for this model specifies a 3-year warranty.
Available Now
Available through Hikvision and authorised Australian security and CCTV distributors; confirm current regional stock and firmware version before purchase.
