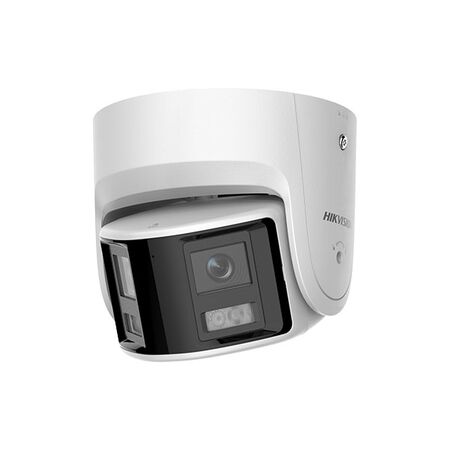

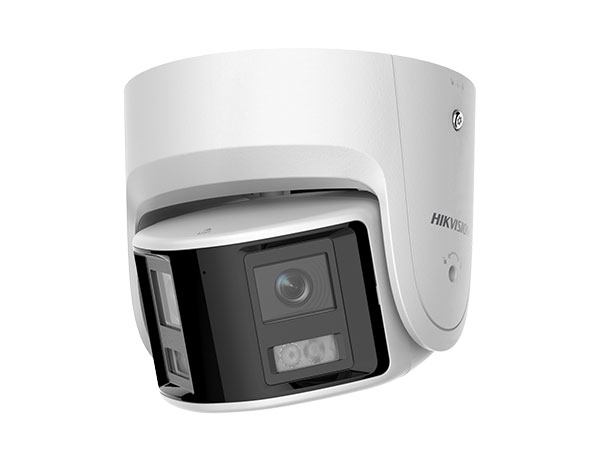

PanoVu ColorVu Turret Camera 6MP Dual 2.8mm Hikvision
Hikvision PanoVu ColorVu turret camera features 6MP resolution and a dual 2.8mm configuration. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 6MP Panoramic ColorVu Turret Camera, Hikvision PanoVu-Style 180° Turret Camera, Dual 2.8mm ColorVu Camera
Technical Specifications
- Model: DS-2CD2367G2P-LSU/SL
- Resolution: 6MP, 3632 × 1632 pixels
- Image Sensor: 2 × 1/2.5-inch progressive-scan CMOS
- Lens: Dual fixed 2.8mm lenses
- Field of View: 180° horizontal, 81° vertical
- Aperture: F1.0
- Low-Light Performance: 0.0005 lux in colour mode; 0 lux with supplementary light
- Video Frame Rate: Up to 20 fps at 3632 × 1632
- Wide Dynamic Range: 130dB WDR
- Video Compression: H.265+, H.265, H.264+ and H.264
- Smart Detection: Human and vehicle classification using deep learning
- Supplementary Lighting: White light up to 30m
- Storage: MicroSD card support up to 512GB
- Network Interface: 10/100 Mbps Ethernet
- Power Supply: 12V DC or PoE 802.3af, Class 3
- Maximum Power Consumption: 10.5W via DC; 12.5W via PoE
- Operating Temperature: -30°C to 60°C
- Ingress Protection: IP67
- Housing Material: Metal base and metal cover
- Dimensions (H x L x W): 145.6mm x 140mm x 140mm
- Weight: 0.92 kg
Key Features
- Dual-lens panoramic imaging with a stitched 180° field of view
- Hikvision ColorVu technology for full-colour imaging in low light
- F1.0 aperture and integrated white-light illumination
- 130dB WDR for scenes with strong backlighting
- Human and vehicle classification to reduce irrelevant alerts
- Built-in active strobe light and audible alarm deterrence
- H.265+ compression for reduced bandwidth and storage requirements
- PoE or 12V DC power options
- IP67 water and dust resistance
- ONVIF-compatible network camera for supported NVR systems
Professional Installation Requirements
- Installation and network commissioning should be performed by a qualified CCTV or security technician. Any mains-side power supply work must be completed by a licensed electrician. Confirm NVR compatibility, as this panoramic camera is intended for compatible Hikvision NVR platforms rather than DVR systems.
Applications
- Residential CCTV and perimeter monitoring
- Commercial and retail security installations
- Wide-area entry, driveway and car park surveillance
- Warehouses, industrial facilities and building perimeters
- Applications requiring panoramic coverage from a single camera position
Standards & Compliance
- AS/NZS 62676.1.1:2020 — Video surveillance systems for security applications, system requirements
- AS/NZS 62676.1.2:2020 — Video surveillance systems, video transmission performance requirements
- AS/NZS 62676.4:2020 — Video surveillance system application guidelines
- AS/NZS CISPR 32:2015 — Electromagnetic compatibility for multimedia equipment, listed for the camera's RCM approval
Environmental Benefits
- H.265+ compression can reduce network bandwidth and recording-storage requirements compared with older compression formats
- Dual-lens panoramic coverage can reduce the number of cameras and associated cabling required for wide areas
- RoHS and WEEE environmental compliance supports restricted-substance control and responsible end-of-life handling
- Metal housing materials can be recovered through appropriate electronic-waste recycling channels
- IP67 construction and durable metal housing support longer service life and reduced replacement waste
Warranty Information
Hikvision Oceania publishes a five-year warranty for eligible premium project-oriented product lines, including the Panoramic Series, for products manufactured from 1 March 2022. Confirm the specific SKU and project eligibility with the Australian distributor before purchase.
Available Now
Available through Hikvision and authorised Australian security and CCTV distributors; stock status should be confirmed with the distributor.
