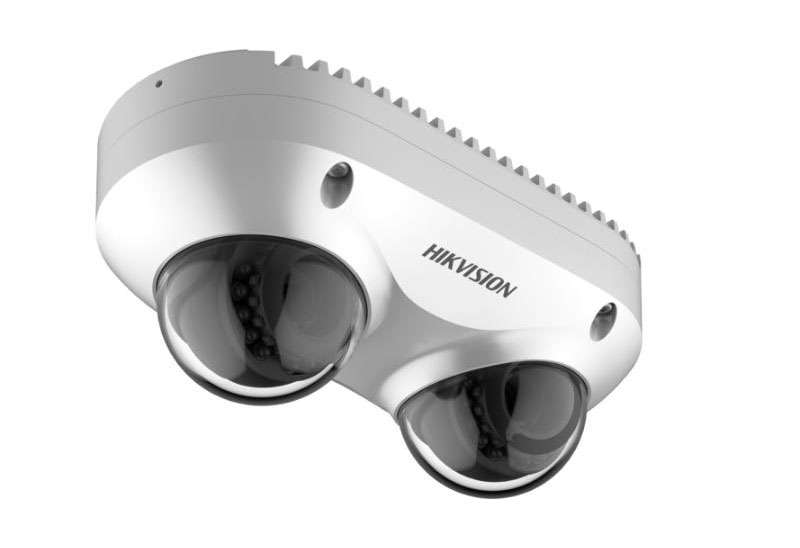

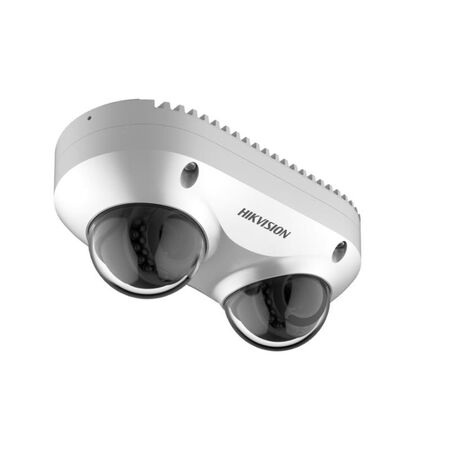

PanoVu Dual Direction Camera 8MP 2.8mm Hikvision
Hikvision PanoVu dual direction camera features 8MP resolution and a 2.8mm lens. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision PanoVu Dual-Lens Camera, Dual-Directional Network Camera, 8MP PanoVu CCTV Camera
Technical Specifications
- Image Sensor: 2 x 8MP 1/2.5-inch progressive scan CMOS
- Resolution: 2 x 3840 x 2160 pixels at up to 24 fps
- Lens: Dual fixed 2.8mm lenses, f/2.0
- Field of View: 103° horizontal, 53° vertical per lens
- Wide Dynamic Range: 120dB WDR
- Minimum Illumination: 0.056 lux in colour; 0 lux with IR
- Infrared Range: Up to 10m
- Video Compression: H.265, H.264 and MJPEG
- Storage: MicroSD/SDHC/SDXC card support up to 256GB
- Network Interface: 10/100Mbps Ethernet
- Power Supply: 12V DC or PoE 802.3af
- Maximum Power Consumption: 11W
- Ingress Protection: IP67
- Impact Protection: IK10
- Operating Temperature: -40°C to +60°C
- Audio: Built-in microphones with audio input and output
- Alarm Interface: One alarm input and one alarm output
- Dimensions (H x L x W): 67.4mm x 164.3mm x 84.6mm
- Weight: 0.77 kg
Key Features
- Dual-directional design with two independent 8MP camera lenses
- 2.8mm wide-angle lenses provide 103° horizontal field of view per lens
- Captures two separate views for broad-area CCTV coverage
- 120dB WDR improves image visibility in high-contrast lighting
- Infrared night vision up to 10m
- H.265 compression reduces network bandwidth and storage requirements
- Supports local recording to microSD card up to 256GB
- IP67 weather protection for outdoor installations
- IK10 vandal-resistant housing
- Supports 12V DC and PoE 802.3af power options
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or communications technician. Mounting, network configuration, PoE or low-voltage power connection, camera alignment and commissioning should follow the manufacturer's instructions and applicable Australian installation requirements.
Applications
- Commercial and industrial CCTV systems
- Building entrances, perimeters and access points
- Retail, warehouse and logistics surveillance
- Car parks and vehicle access areas
- Public-area monitoring requiring two directional views
- Outdoor security installations requiring vandal-resistant weather protection
Standards & Compliance
- Relevant CCTV system standard: AS/NZS 62676.1.1:2020
- Relevant CCTV application and installation guidance: AS/NZS 62676.4:2020
- Electrical equipment safety requirements may apply under AS/NZS 3820 and applicable Australian regulatory schemes; verify the complete installation and power supply configuration
Environmental Benefits
- Maximum power consumption of 11W supports lower operating energy use than higher-power multi-camera installations
- H.265 video compression can reduce network traffic and recording storage requirements
- IP67 and IK10 protection can extend service life and reduce replacement-related material waste
- MicroSD and NAS recording options can reduce reliance on additional dedicated recording hardware in suitable systems
Warranty Information
Hikvision Australia lists the Panoramic Series, including network cameras, among product lines eligible for a five-year manufacturer warranty for products manufactured after 1 March 2022, subject to the applicable warranty terms and purchase conditions.
Available Now
Available through Hikvision and authorised Australian security and CCTV distributors, subject to regional model availability.
